LEMON Manuals
: Even more car manuals for everyone
Home
>>
Nissan-Datsun
>>
2013
>>
NV3500 HD SL
>>
Repair and Diagnosis
>>
Body & Frame
>>
Seats
>>
Unit Disassembly And Assembly
>>
Second Row Seats
>>
Exploded View
Exploded View

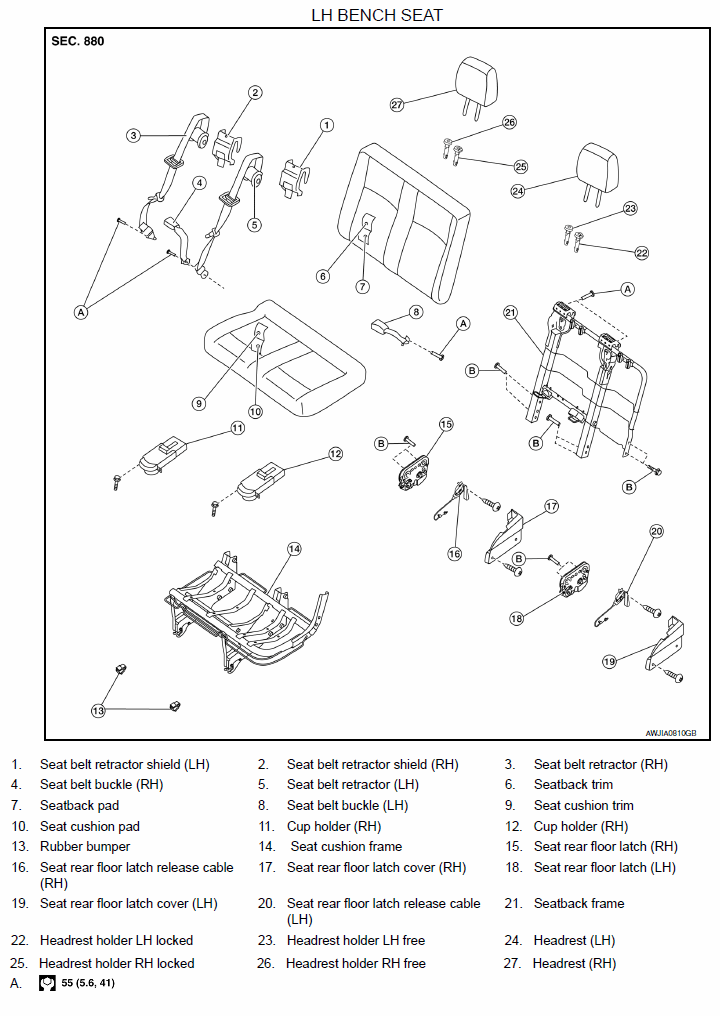

Fig 1: Exploded View Of Second Row Seats (LH Bench Seat)
Courtesy of NISSAN NORTH AMERICA, INC.

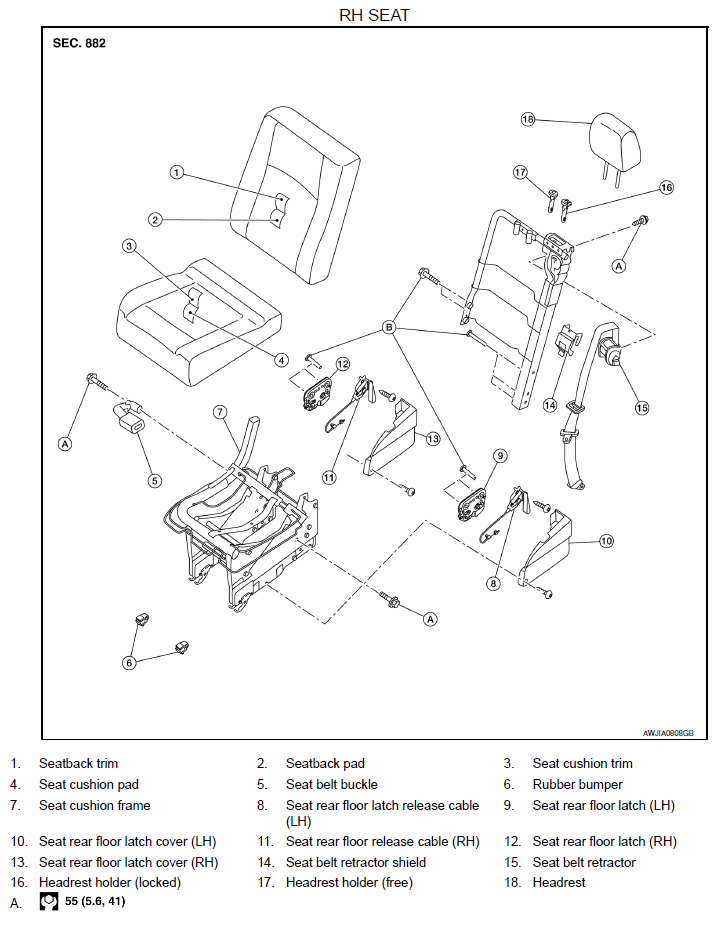

Fig 2: Exploded View Of Second Row Seats (RH Seat)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
