Disassembly and Assembly: Notes

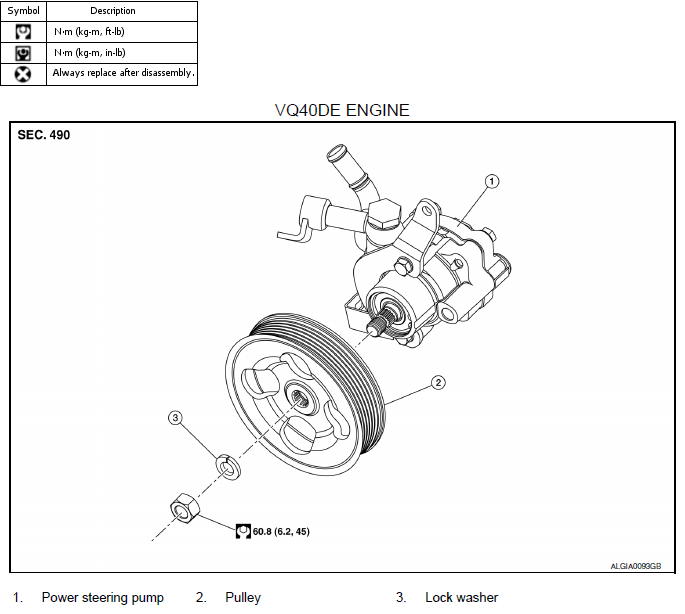

Fig 1: Power Steering Pump, Pulley And Lock Washer (VQ40DE Engine) With Torque Specifications
G09018194Courtesy of NISSAN NORTH AMERICA, INC.

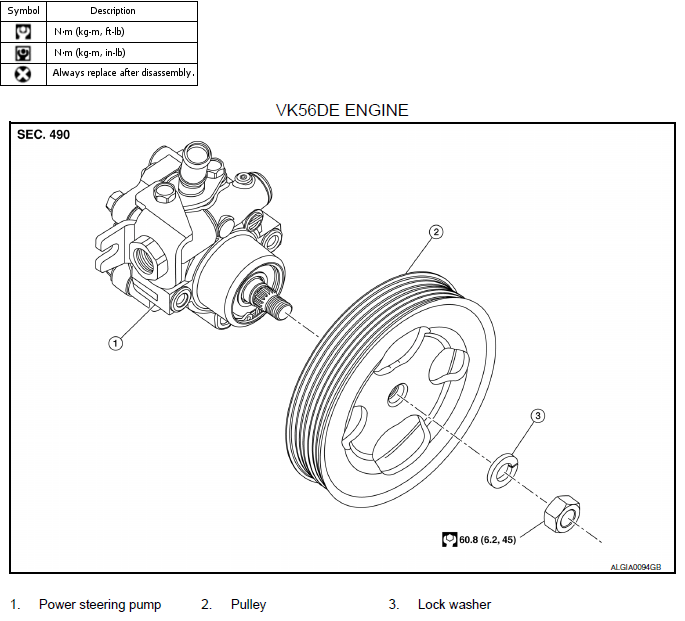

Fig 2: Power Steering Pump, Pulley And Lock Washer (VK56DE Engine) With Torque Specifications
G09018195Courtesy of NISSAN NORTH AMERICA, INC.
