Fuel Pressure Release

With CONSULT

1. Turn ignition switch ON.
2. Select ENGINE using CONSULT.
3. Perform "FUEL PRESSURE RELEASE" in "WORK SUPPORT" mode of "ENGINE".
4. Start engine.
5. After engine stalls, crank it two or three times to release all fuel pressure.
6. Turn ignition switch OFF.

Without CONSULT

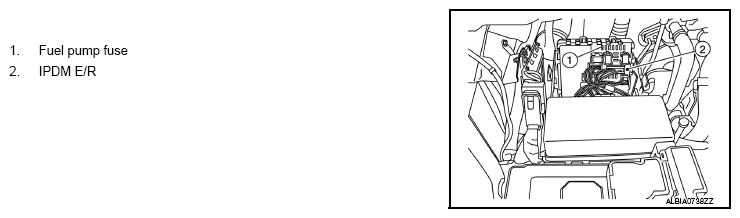

1. Remove fuel pump fuse (# 48) located in IPDM E/R.
2. Start engine.
3. After engine stalls, crank it two or three times to release all fuel pressure.
4. Turn ignition switch OFF.
5. Reinstall fuel pump fuse after servicing fuel system.

   : END

   Fig 1: Checking Fuel Pressure Using Fuel Tube Adapter

   Courtesy of NISSAN NORTH AMERICA, INC.
