AWD: Exploded View

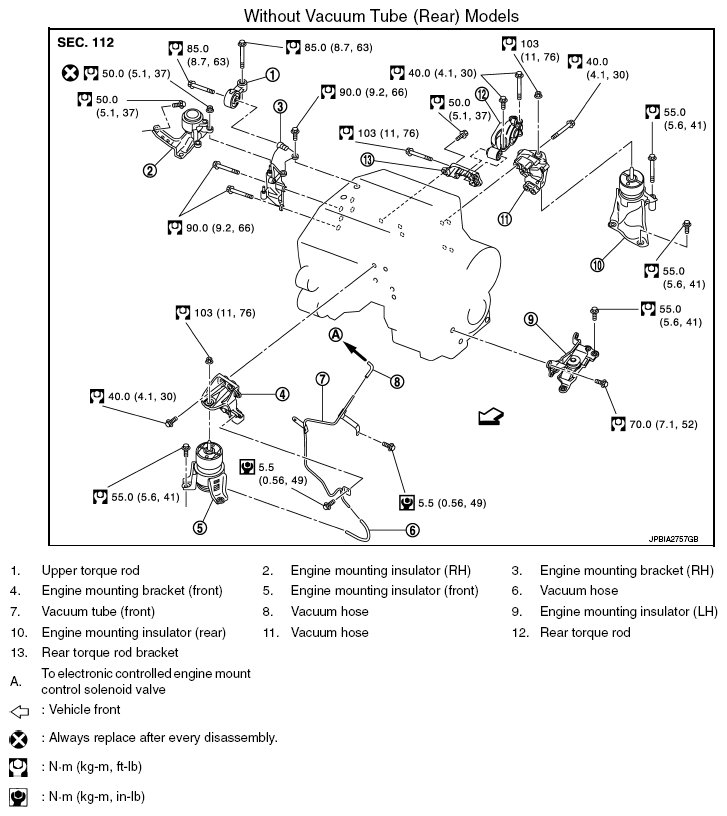

Fig 1: Exploded View Of Engine Assembly - AWD (Without Vacuum Tube Models) With Torque Specifications
G08954817Courtesy of NISSAN NORTH AMERICA, INC.

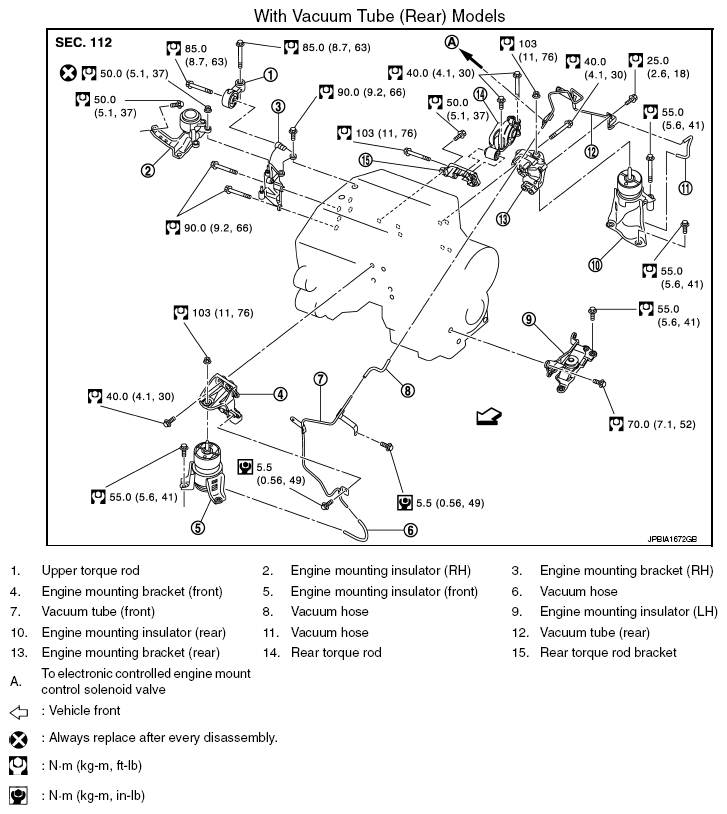

Fig 2: Exploded View Of Engine Assembly - AWD (With Vacuum Tube Models) With Torque Specifications
G08954818Courtesy of NISSAN NORTH AMERICA, INC.
