2WD: Exploded View

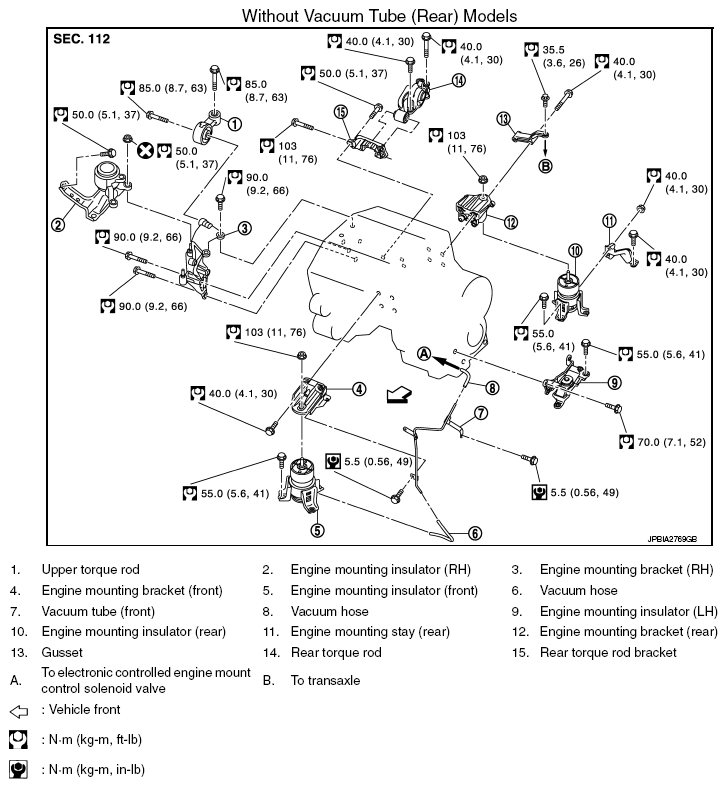

Fig 1: Exploded View Of Engine Assembly - 2WD (Without Vacuum Tube Models) With Torque Specifications
G08954799Courtesy of NISSAN NORTH AMERICA, INC.

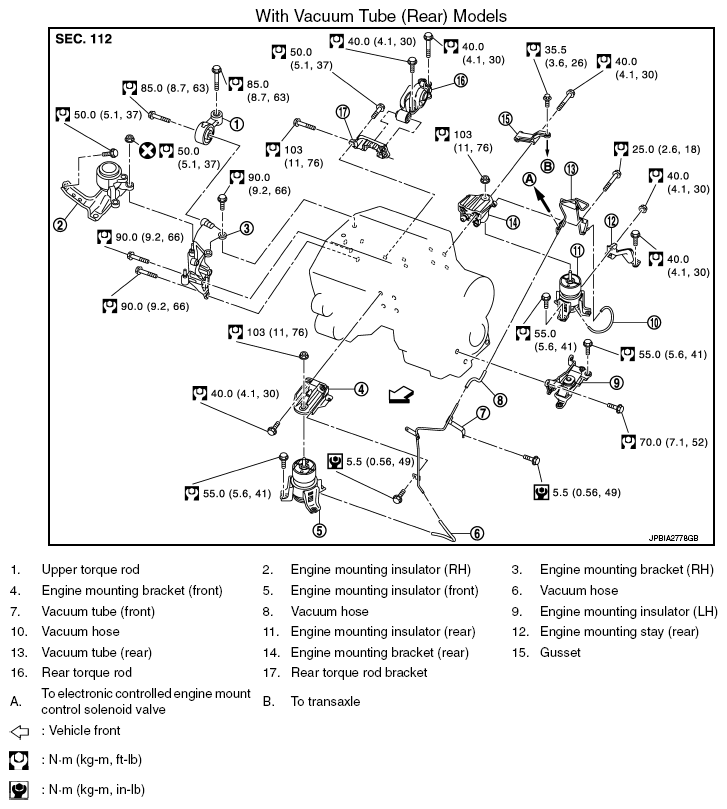

Fig 2: Exploded View Of Engine Assembly - 2WD (With Vacuum Tube Models) With Torque Specifications
G08954800Courtesy of NISSAN NORTH AMERICA, INC.
