Home >> Nissan-Datsun >> 2013 >> Murano SL, FWD >> Repair and Diagnosis >> Engine Mechanical >> Engine Mechanical (Except CROSSCABRIOLET) >> Unit Disassembly And Assembly >> Cylinder Head >> Exploded View >> Disassembly

Exploded View: Disassembly

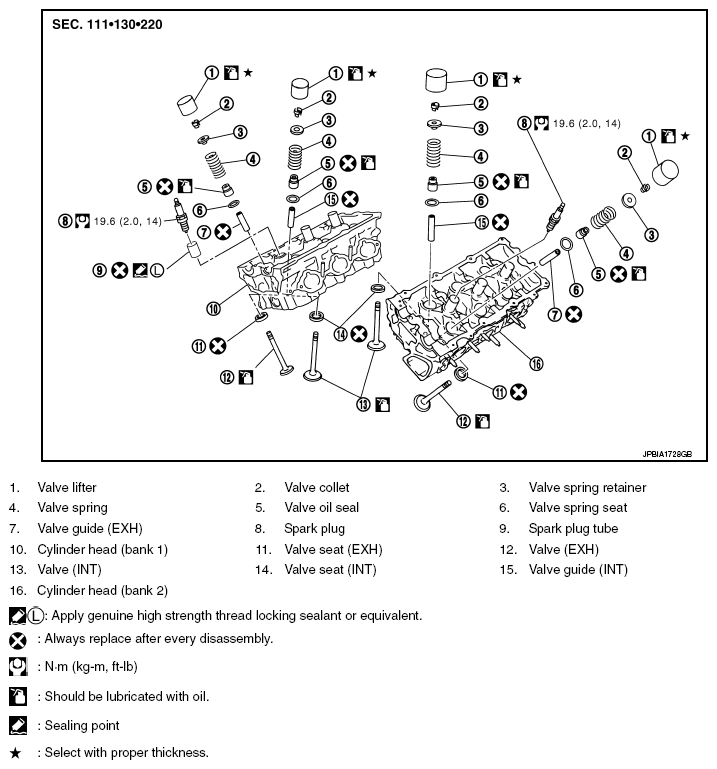

Fig 1: Disassembled View Of Cylinder Head With Torque Specifications
G08954881Courtesy of NISSAN NORTH AMERICA, INC.
