Instrument Panel (Except CROSSCABRIOLET)
>>
Removal And Installation
>>
Instrument Panel Assembly
>>
Exploded View
Exploded View

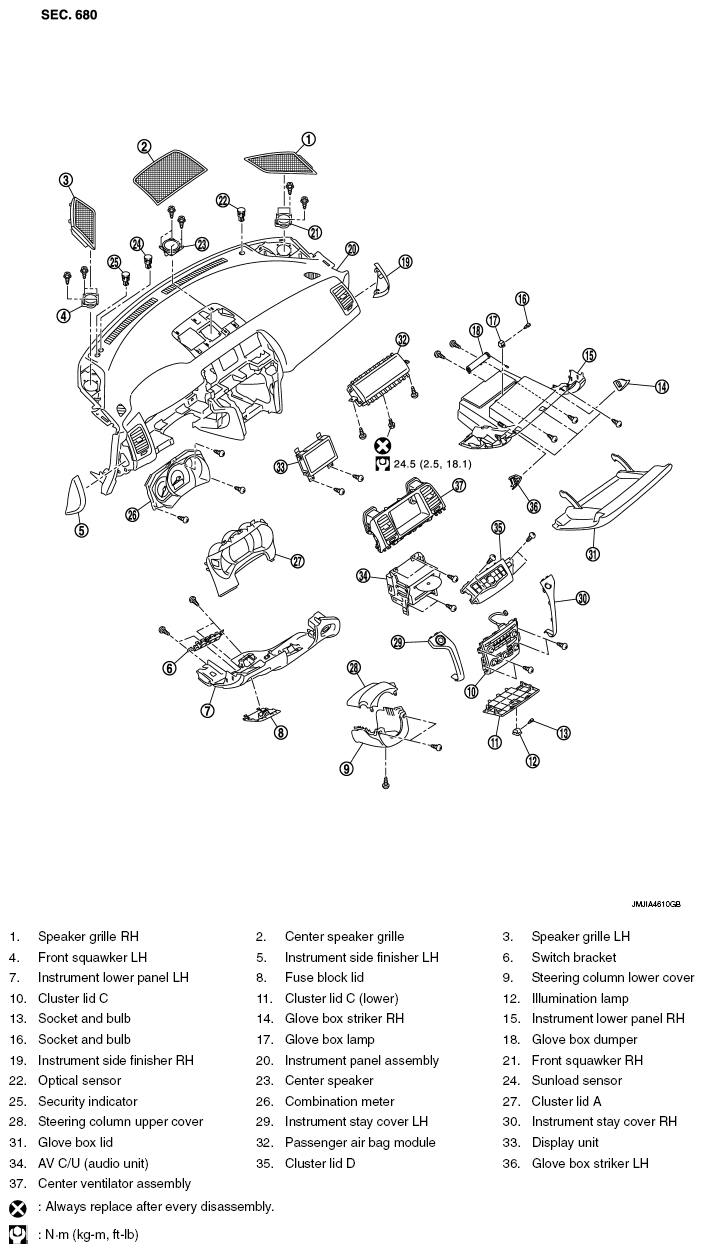

Fig 1: Exploded View Of Instrument Panel Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
