Nissan-Datsun
>>
2013
>>
Murano LE, AWD
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Engine Lubrication System (Except CROSSCABRIOLET)
>>
Removal And Installation
>>
Oil Cooler
>>
Exploded View
Exploded View

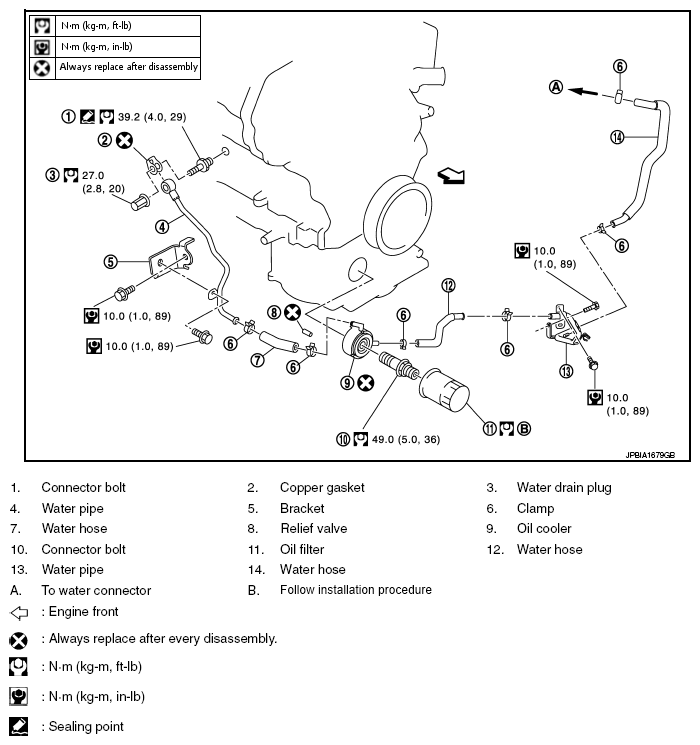

Fig 1: Exploded View Of Oil Cooler With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
