Disassembly and Assembly: Notes

The steering column assembly without electric motor is not serviceable and must be replaced as an assembly.

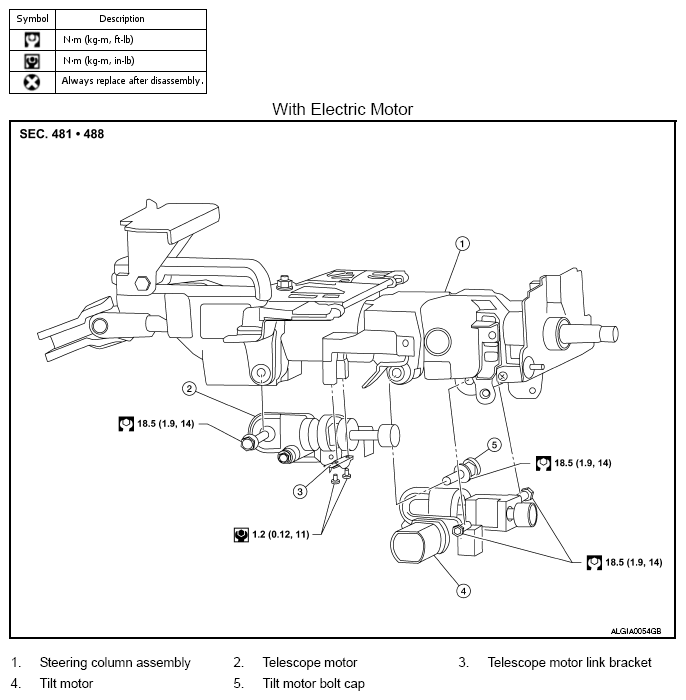

Fig 1: Disassembled Steering Column With Electric Motor
G08909633Courtesy of NISSAN NORTH AMERICA, INC.
