Nissan-Datsun
>>
2013
>>
Maxima S
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission (CVT)
>>
Removal And Installation
>>
Secondary Speed Sensor
>>
Exploded View
Exploded View

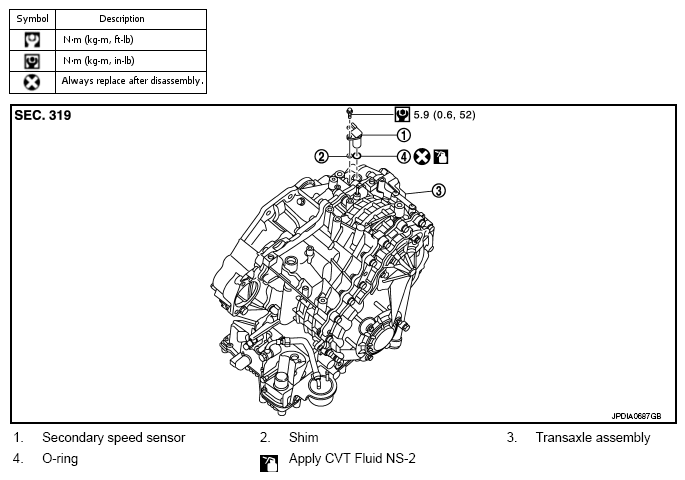

Fig 1: Exploded View Of Secondary Speed Sensor
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
