Exploded View

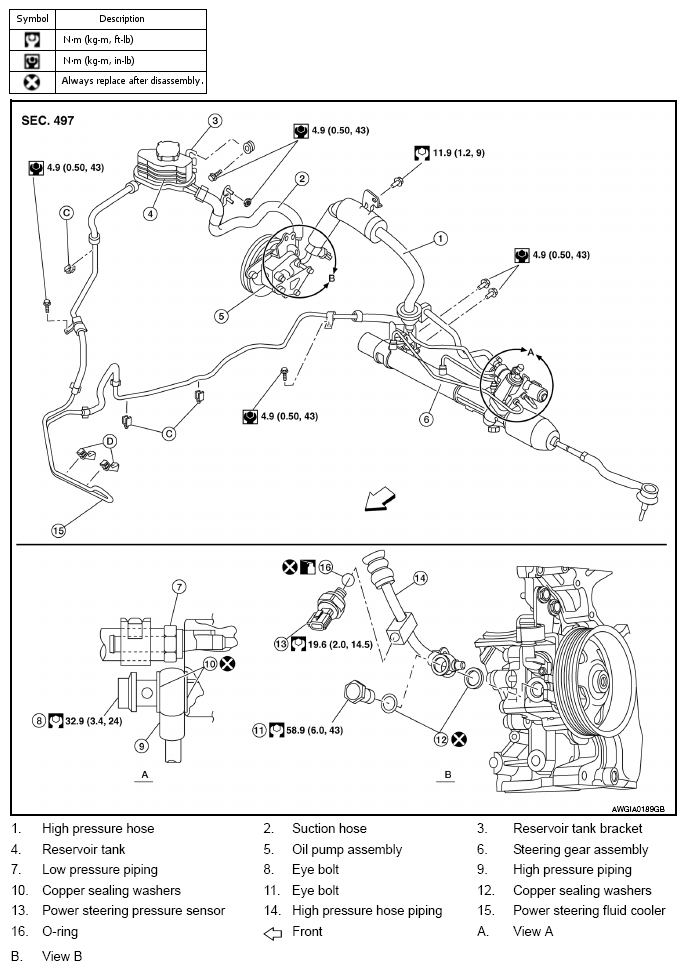

Fig 1: Exploded View Of Hydraulic Line
G08909630Courtesy of NISSAN NORTH AMERICA, INC.
