Nissan-Datsun
>>
2013
>>
Maxima S
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Removal And Installation
>>
Generator
>>
Exploded View
Exploded View

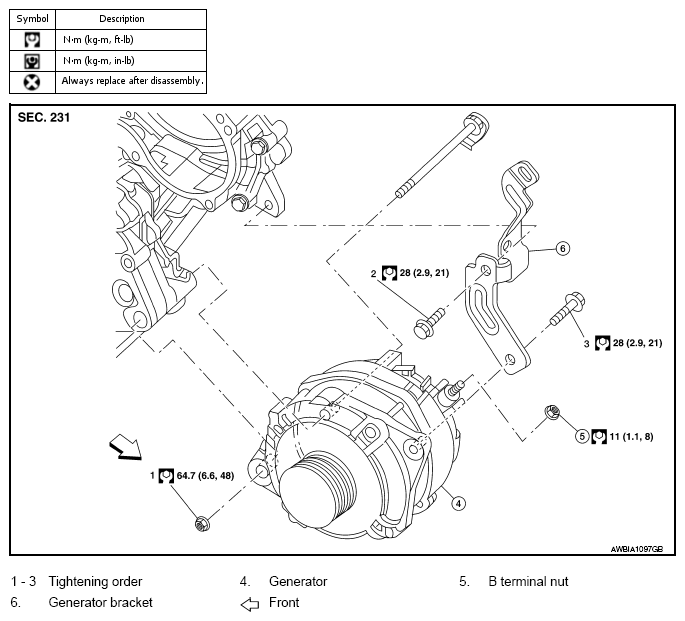

Fig 1: Exploded View Of Generator
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
