System Diagram

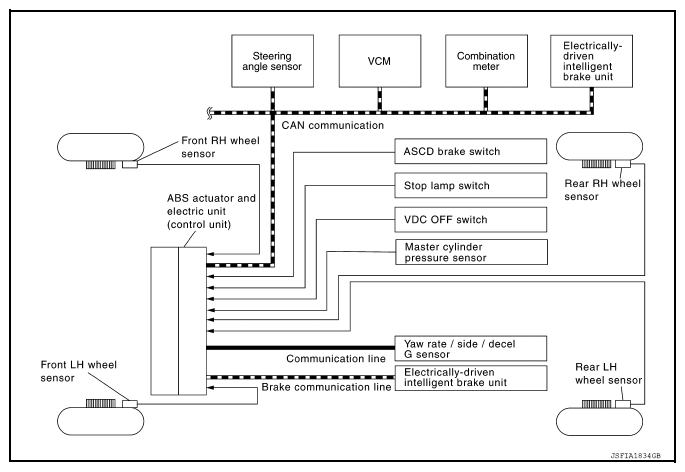

Fig 1: Brake Control System Diagram

G08703956

Courtesy of NISSAN NORTH AMERICA, INC.
