STARTING SYSTEM (WITH INTELLIGENT KEY): System Diagram

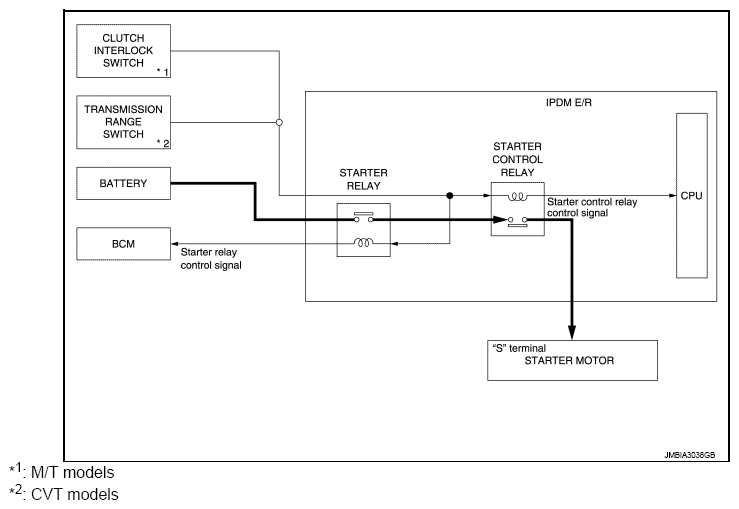

Fig 1: Starting System (With Intelligent Key) System Diagram

G08708802

Courtesy of NISSAN NORTH AMERICA, INC.
