Rear Seat
>>
Exploded View
Exploded View

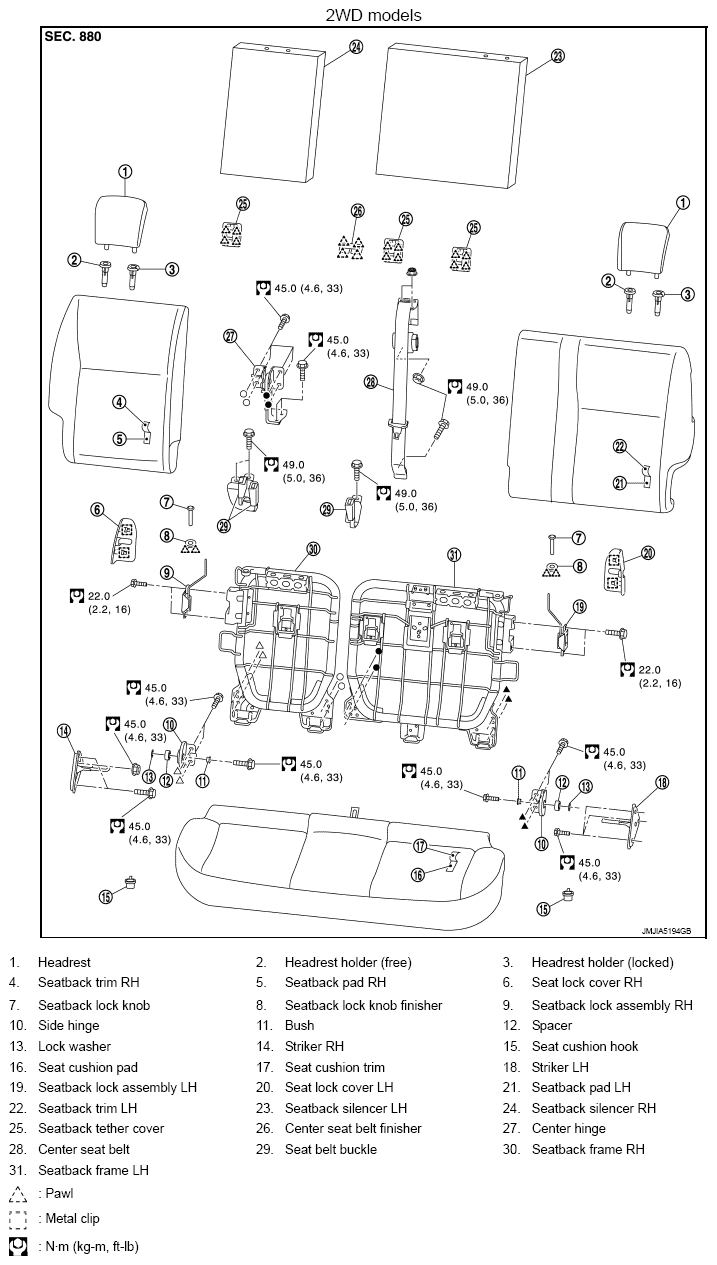

Fig 1: Exploded View Of Rear Seat (2WD Models)
Courtesy of NISSAN NORTH AMERICA, INC.

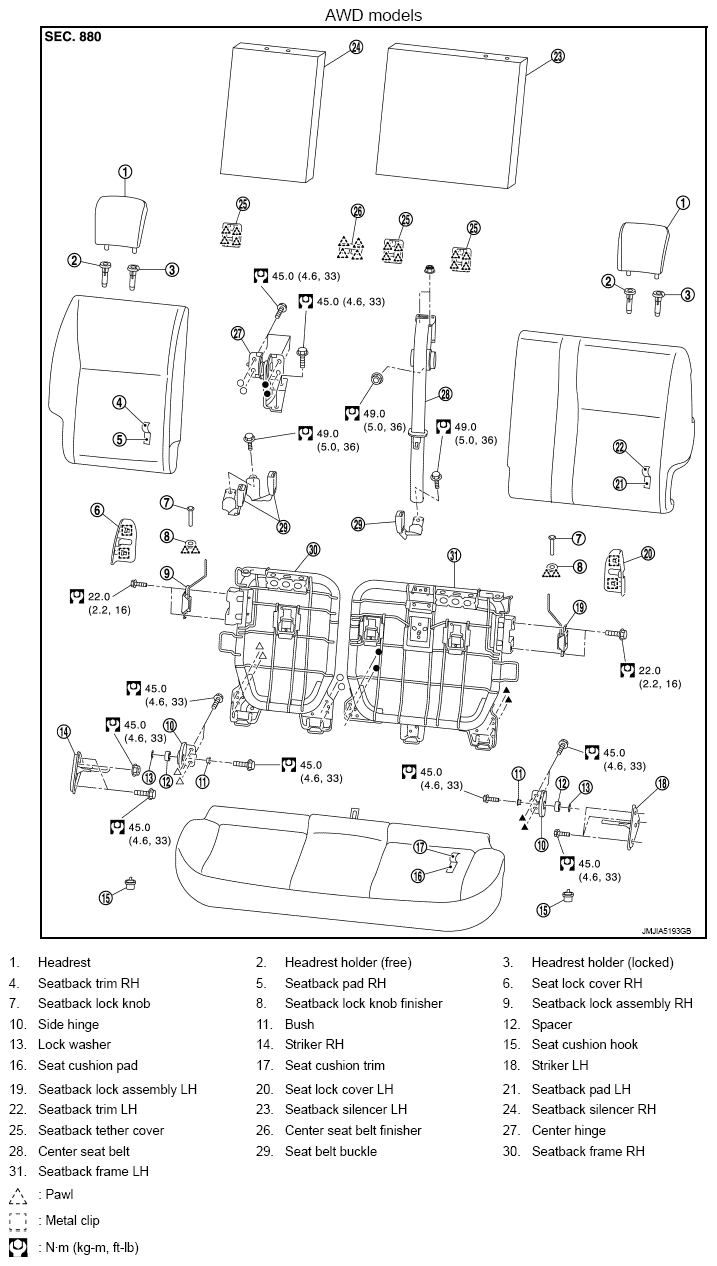

Fig 2: Exploded View Of Rear Seat (AWD Models)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
