Driver Seat

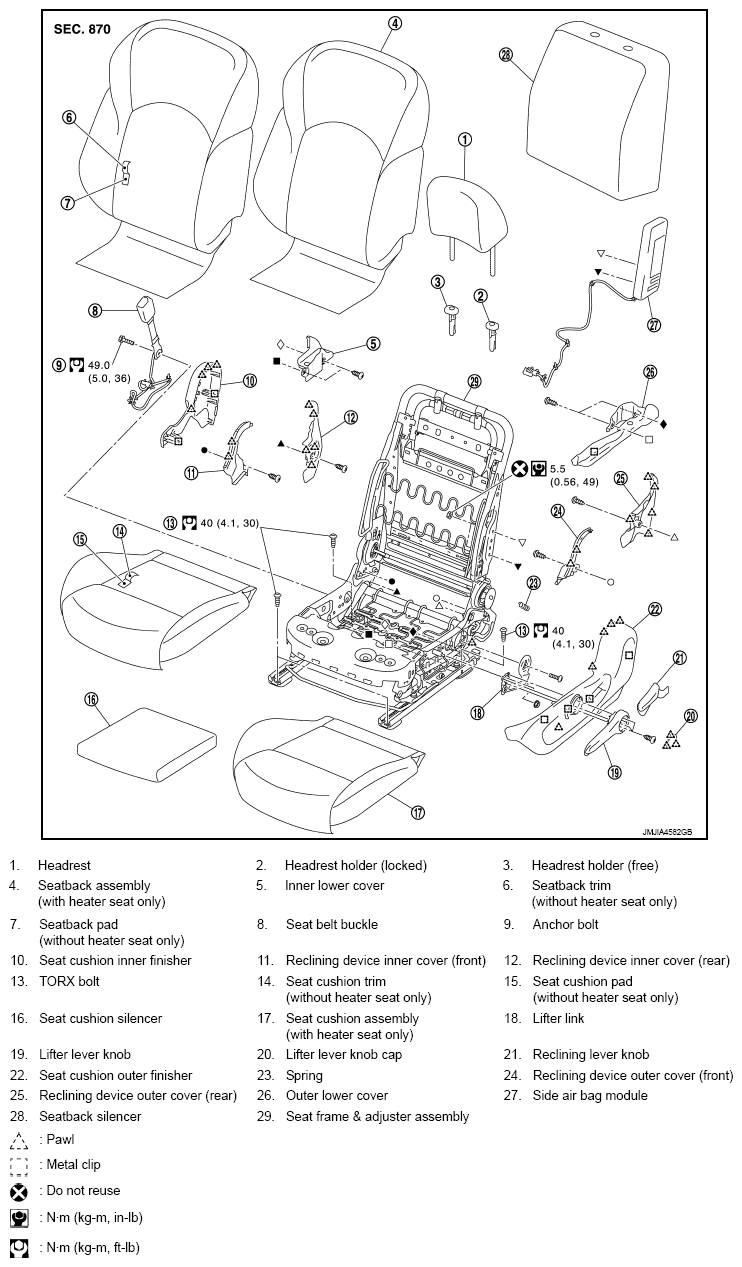

Fig 1: Exploded View Of Driver Front Seat

G08707352

Courtesy of NISSAN NORTH AMERICA, INC.
