Nissan-Datsun
>>
2013
>>
Juke SL, 4WD
>>
Repair and Diagnosis
>>
Transmission
>>
Transfer Case
>>
Unit Disassembly And Assembly
>>
Drive Pinion
>>
Exploded View
Exploded View

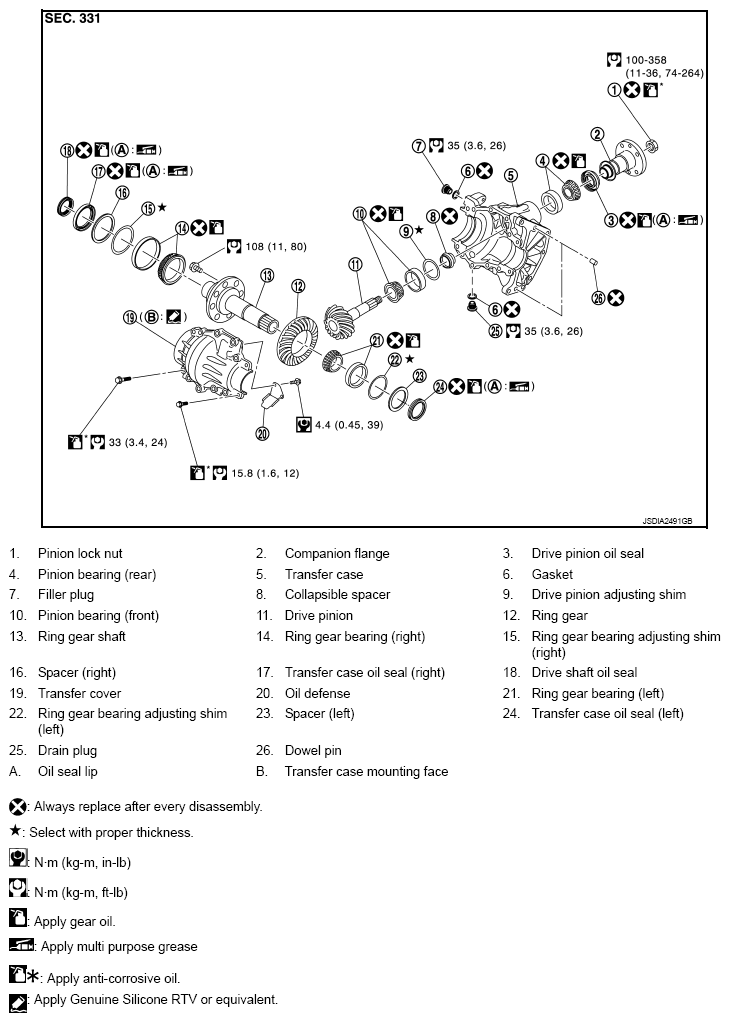

Fig 1: Exploded View Of Drive Pinion With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
