AWD SYSTEM: System Diagram: Notes

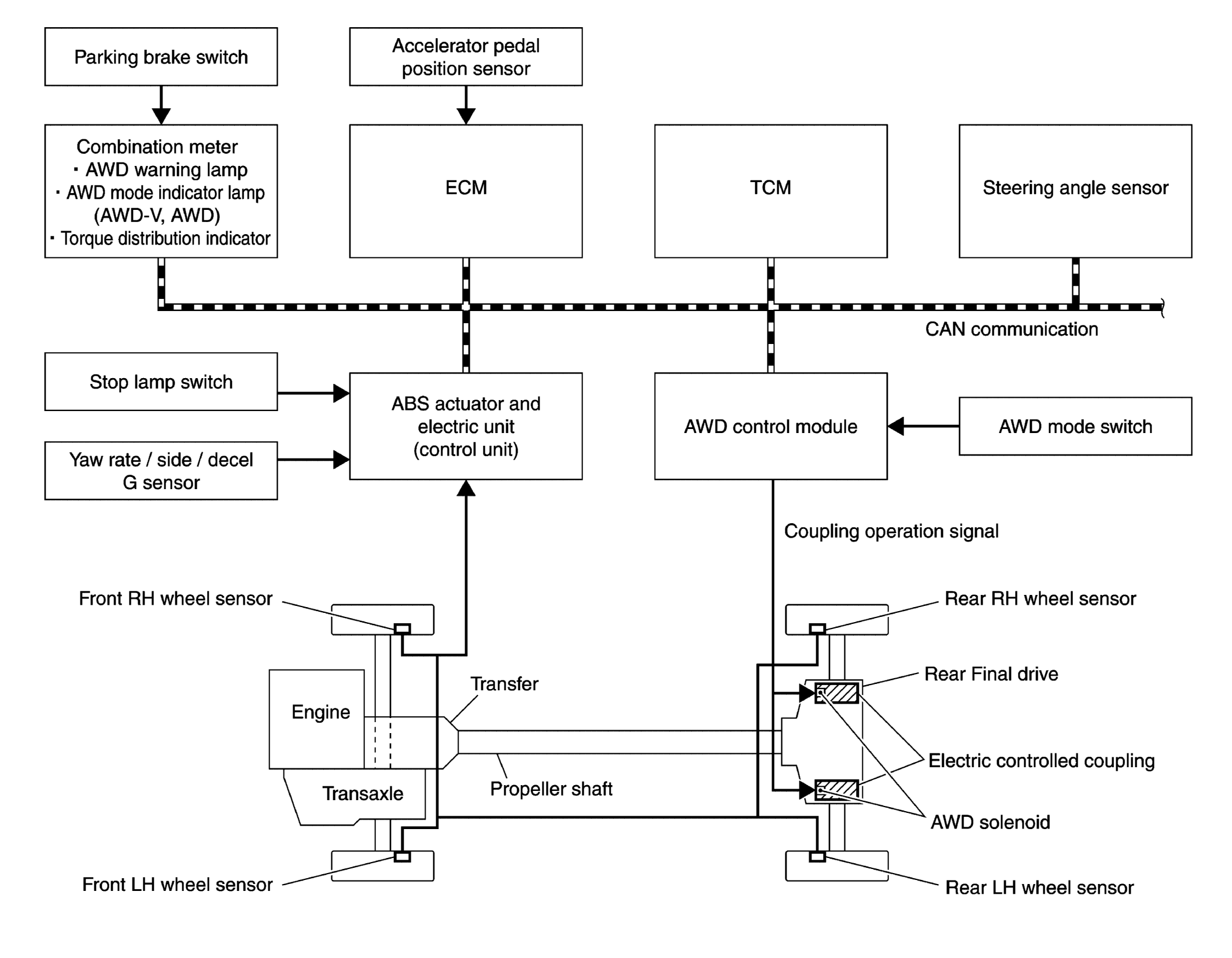

Fig 1: AWD System Diagram

G06935874

Courtesy of NISSAN NORTH AMERICA, INC.
