Work Procedure

With CONSULT

1. Confirm the unit characteristics (A and B) of electric controlled coupling (left and right).
   NOTE:

   • This illustration is an example.
   • For the illustration, the unit characteristics are following.

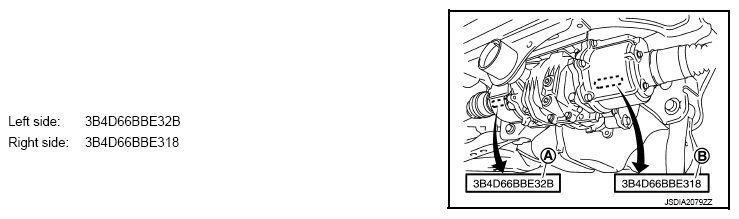

   Fig 1: Identifying Electric Controlled Coupling Unit Characteristics (Example)

   Courtesy of NISSAN NORTH AMERICA, INC.
2. Turn the ignition switch OFF to ON.
3. Select "UNIT CHARACTERISTICS WRITE" in "WORK SUPPORT" for "ALL MODE AWD/4WD".
4. Input unit characteristics.
5. Select "Start".
6. Check that "UNIT CHARACTERISTICS WRITE COMPLETED" is displayed.

   : WORK END
