Exploded View: Disassembly

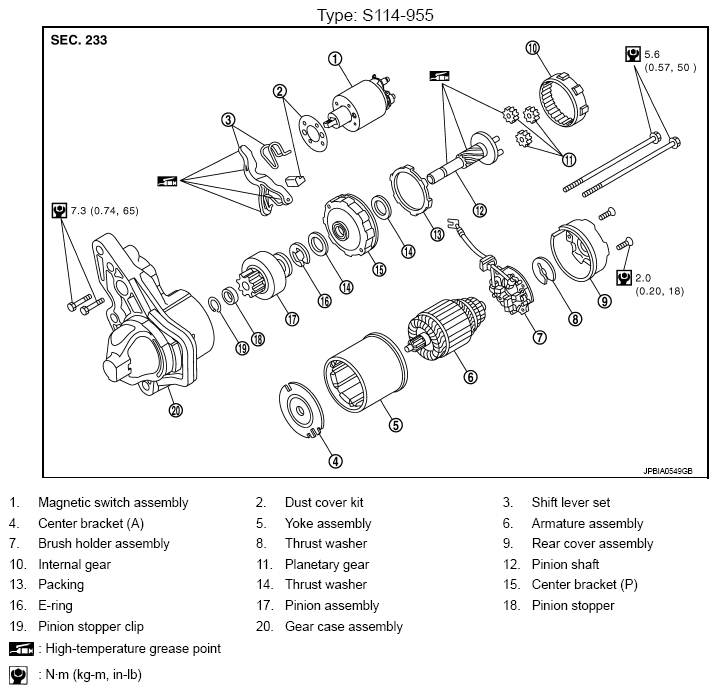

Fig 1: Exploded View Of Starter Motor With Torque Specifications (Type S114-955)
G08708811Courtesy of NISSAN NORTH AMERICA, INC.
NOTE: Apply high-temperature grease to lubricate the bearing, gears and frictional surface when assembling the starter.
