AWD: Exploded View
AWD: Exploded View

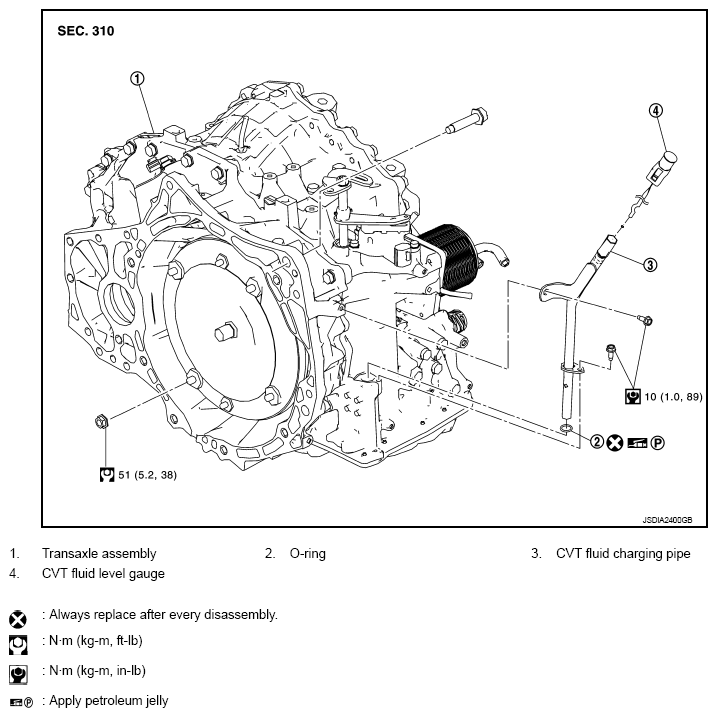

Fig 1: Transaxle Assembly Replacement Components With Torque Specifications (AWD)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
