"M" Position

When the selector lever is put in the manual shift gate side, the fixed changing gear line is set. By moving the selector lever to + side or - side, the manual mode switch is changed over, and shift change like M/T becomes possible following the changing gear set line step by step.

• Except for JUKE NISMO

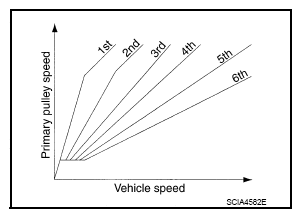

  Fig 1: Gear Shifting Characteristics Curve (M Position - Except For JUKE NISMO)

  Courtesy of NISSAN NORTH AMERICA, INC.
• For JUKE NISMO
  Fig 2: Gear Shifting Characteristics Curve (M Position - For JUKE NISMO)

  Courtesy of NISSAN NORTH AMERICA, INC.

Manual Mode Information

The TCM transmits the manual mode shift refusal signal to the combination meter if the TCM refuses the transaxle from the driving status of vehicle when the selector lever shifts to "UP (+ side)" or "DOWN (- side)" side. The combination meter blinks shift position indicator on the combination meter and sounds the buzzer to indicate the driver that the shifting is not performed when receiving this signal. However, the TCM does not transmit the manual mode shift refusal signal in the conditions as per the following.

• When the selector lever shifts to "DOWN (- side)" side while driving in M1.
• When the selector lever shifts to "UP (+ side)" side while driving in M6 (M7*).

  *: For JUKE NISMO
