"D" Position

Gear shifting is performed in all shifting ranges from the lowest to the highest gear ratio.

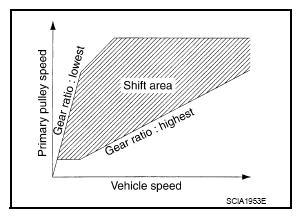

Fig 1: Gear Shifting Characteristic Curve (D Position)

G08706707

Courtesy of NISSAN NORTH AMERICA, INC.
