INTEGRATED CONTROL SYSTEM: System Diagram

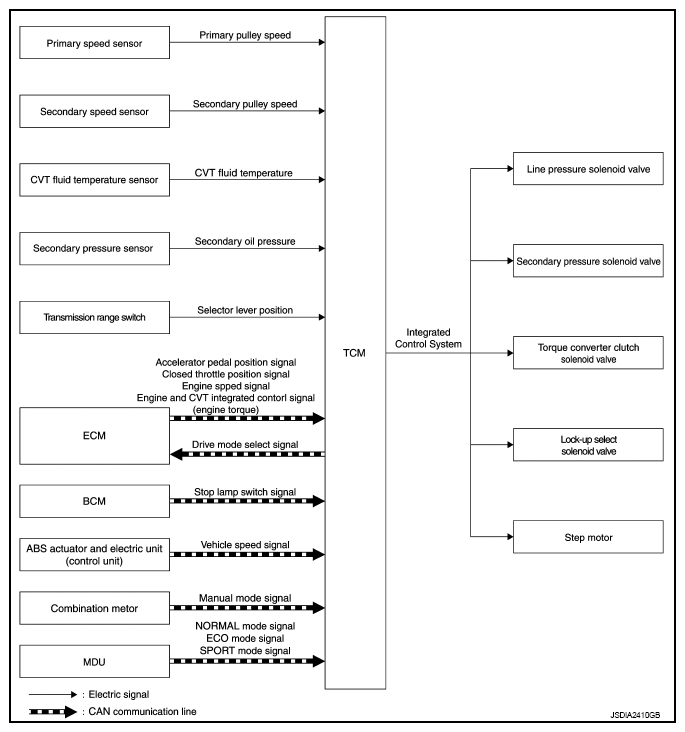

Fig 1: Integrated Control System Diagram

G08706712

Courtesy of NISSAN NORTH AMERICA, INC.
