CVT CONTROL SYSTEM: System Description
CVT CONTROL SYSTEM: System Description

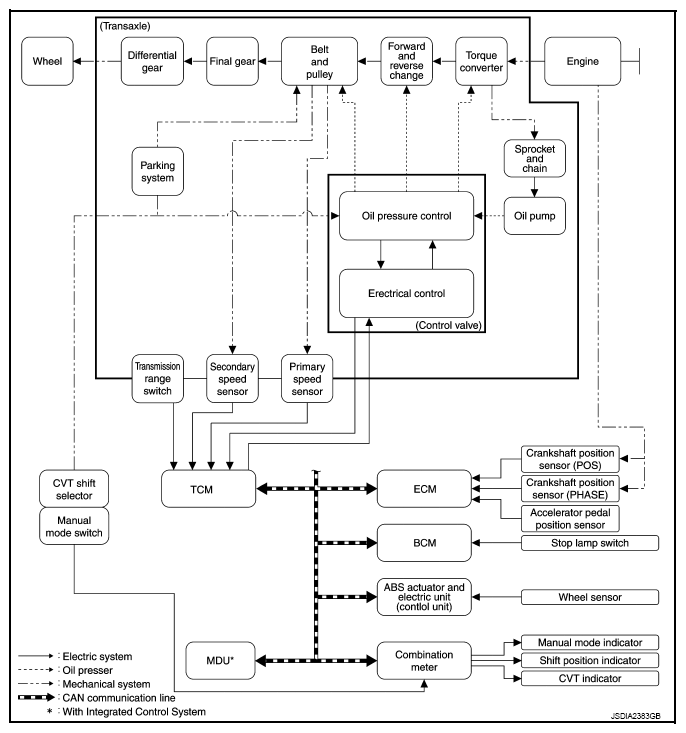

Fig 1: CVT Control System Description
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
