CVT CONTROL SYSTEM: Manual Mode Indicator

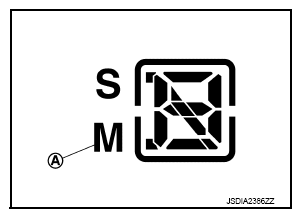

- Manual mode indicator (A) is positioned on the combination meter.
- The manual mode indicator illuminates when the selector lever is operated to the manual shift gate side. It also displays the gear position (M1↔M6) when the selector lever is operated to the + side or - side. (Operates only during driving.)
- The manual mode indicator turns off when the selector lever is operated to the main shift gate side.
| Condition (status) | Manual mode indicator |
|---|---|
| Selector lever is operated to the manual shift gate side. | Display |
| Selector lever is operated to the + side or - side. | M1↔M6 |
| Selector lever is operated to the main shift gate side. | Nothing displayed. |
