Nissan-Datsun
>>
2013
>>
Juke S, FWD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission
>>
Removal And Installation
>>
Control Valve
>>
Exploded View
Exploded View

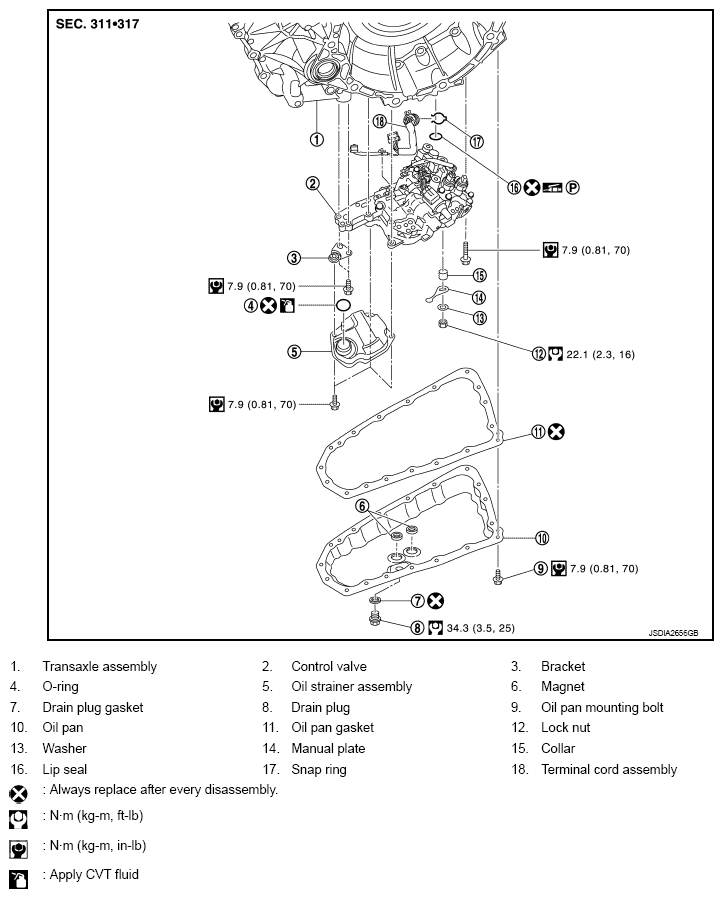

Fig 1: Exploded View Of Control Valve With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
