Nissan-Datsun
>>
2013
>>
Juke S, FWD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission
>>
Removal And Installation
>>
Control Cable
>>
Exploded View
>>
2WD Models
2WD Models

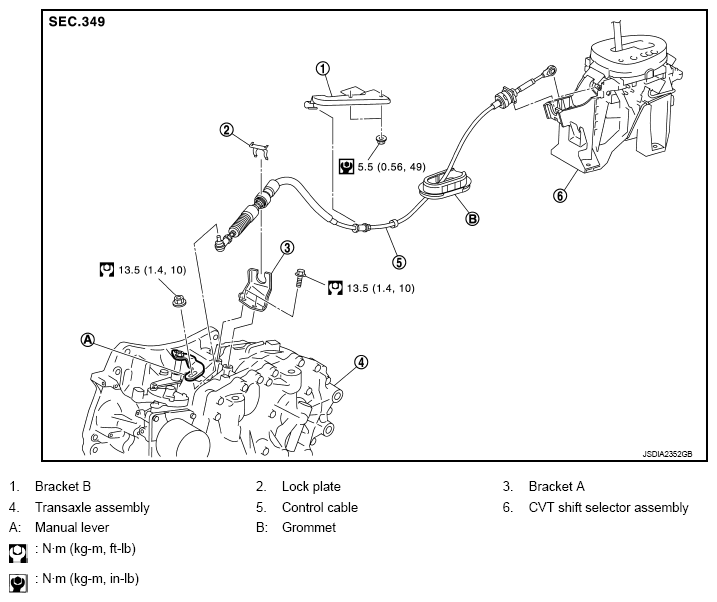

Fig 1: Exploded View Of Control Cable With Torque Specifications (2WD Models)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
