Cruise Test

CHECK VEHICLE SPEED WHEN SHIFTING GEARS - PART 1
1. Drive vehicle for approximately 10 minutes to warm engine oil and CVT fluid up to operating temperature.
  CVT fluid operating temperature: 50 - 80°C (122 - 176°F)
2. Park vehicle on flat surface.
3. Move selector lever to "P" position.
4. Start engine.
5. Move selector lever to "D" position.
6. Accelerate vehicle to 2/8-way throttle depressing accelerator pedal constantly.
  Using CONSULT, Read vehicle speed and engine speed. Refer to "SHIFT CHARACTERISTICS ".

  OK or NG

  OK: GO TO 2.

  NG: Refer to "SYMPTOM TABLE ". Continue "Road Test".

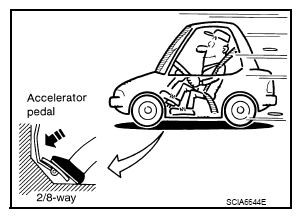

  Fig 1: Accelerating Vehicle To 2/8-Way Throttle Depressing Accelerator Pedal Constantly
  Courtesy of NISSAN NORTH AMERICA, INC.
CHECK VEHICLE SPEED WHEN SHIFTING GEARS - PART 2
1. Park vehicle on flat surface.
2. Move selector lever to "D" position.
3. Accelerate vehicle to full depression depressing accelerator pedal constantly.
  Using CONSULT, Read vehicle speed and engine speed. Refer to "SHIFT CHARACTERISTICS ".

  OK or NG

  OK: GO TO 3.

  NG: Refer to "SYMPTOM TABLE ". Continue "Road Test".

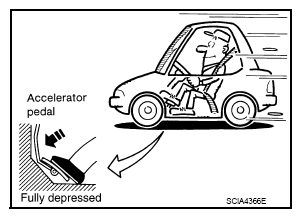

  Fig 2: Accelerating Vehicle To Fully Depressed Pedal
  Courtesy of NISSAN NORTH AMERICA, INC.
CHECK MANUAL MODE FUNCTION
Move to manual mode from "D" position.

Does it switch to manual mode?

YES: GO TO 4.

NO: Refer to "SYMPTOM TABLE ". Continue "Road Test".
CHECK SHIFT-UP FUNCTION
During manual mode driving, is upshift from M1 ← M2 → M3 → M4 → M5 → M6 performed?

Using CONSULT, Read the gear position. Refer to "CONSULT FUNCTION ".

Is upshifting correctly performed?

YES: GO TO 5.

NO: Refer to "SYMPTOM TABLE ". Continue "Road Test".
CHECK SHIFT-DOWN FUNCTION
During manual mode driving, is downshift from M6 → M5 → M4 → M3 → M2 → M1 performed?

Using CONSULT, Read the gear position. Refer to "CONSULT FUNCTION ".

Is downshifting correctly performed?

YES: GO TO 6.

NO: Refer to "SYMPTOM TABLE ". Continue "Road Test".
CHECK ENGINE BRAKE FUNCTION
Check engine brake.

Does engine braking effectively reduce speed in M1 position?

YES:
1. Stop the vehicle.
2. Perform self-diagnosis. Refer to "CONSULT FUNCTION ".
NO: Refer to "SYMPTOM TABLE ". Then continue trouble diagnosis.
