Nissan-Datsun
>>
2013
>>
Juke S, FWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Fuel Delivery
>>
Fuel System
>>
Removal And Installation
>>
EVAP Canister
>>
2WD
>>
2WD: Exploded View
2WD: Exploded View

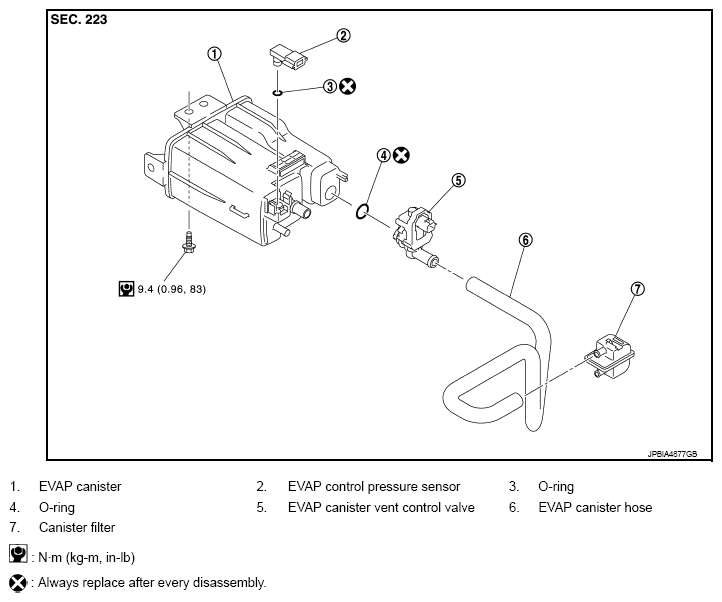

Fig 1: Exploded View Of EVAP Canister With Torque Specifications (2WD)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
