LEMON Manuals
: Even more car manuals for everyone
Home
>>
Nissan-Datsun
>>
2013
>>
Juke S, FWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Glass & Window System
>>
Removal And Installation
>>
Back Door Window Glass
>>
Exploded View
Exploded View

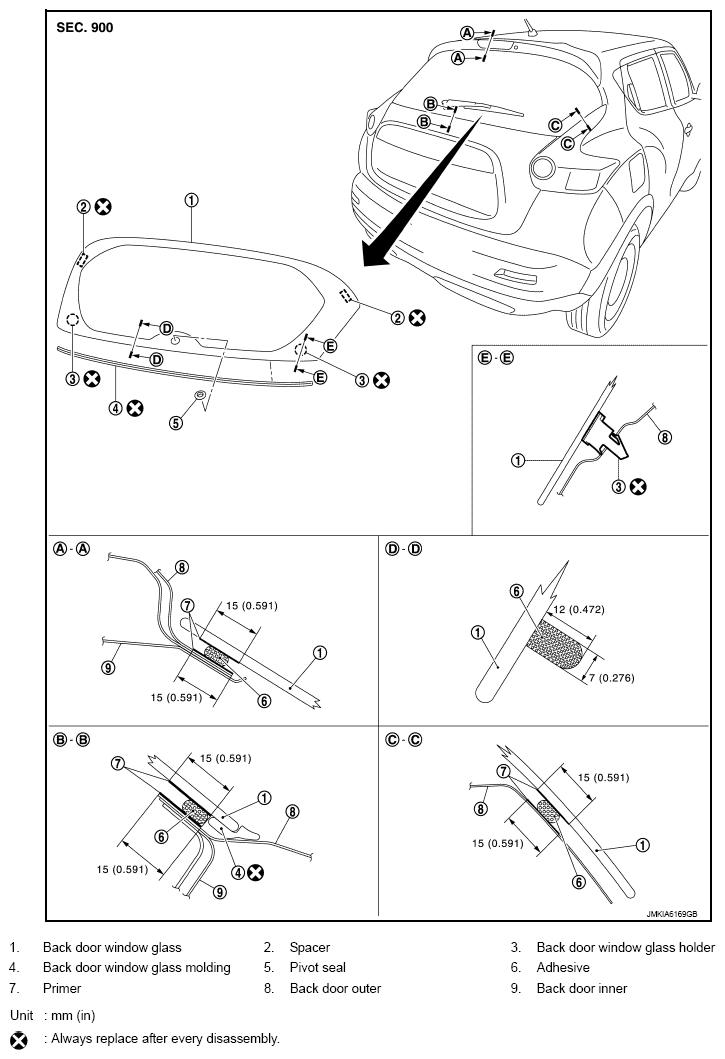

Fig 1: Exploded View Of Back Door Window Glass
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
