Exploded View

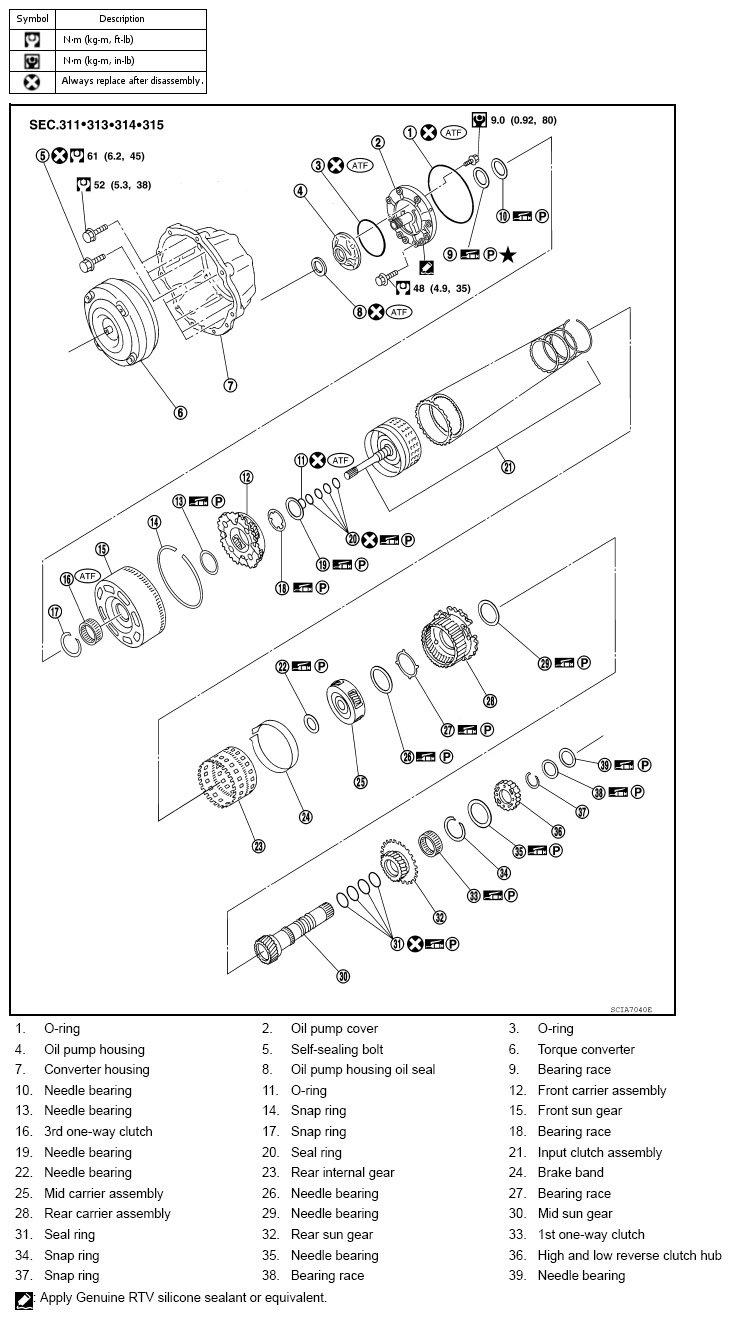

Fig 1: Automatic Transmission Overhaul Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENT " for symbols not described on the above.

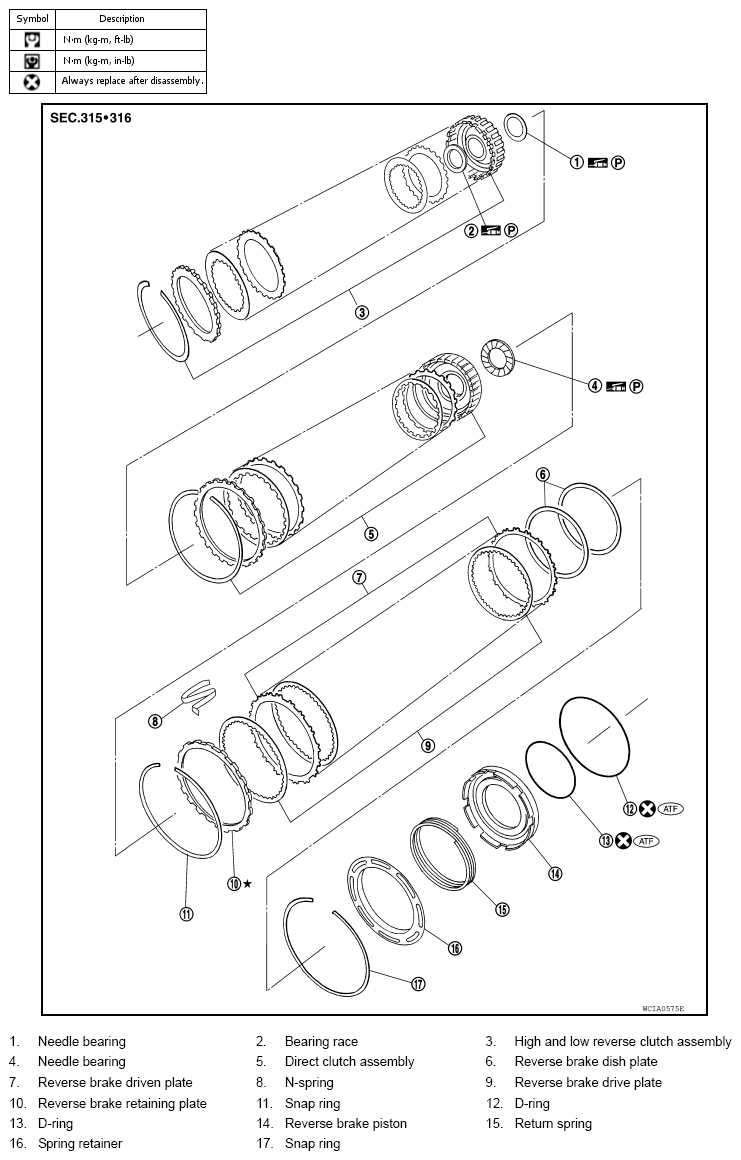

Fig 2: Disassembled View Of Automatic Transmission Overhaul Components

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENT " for symbols in the figure.

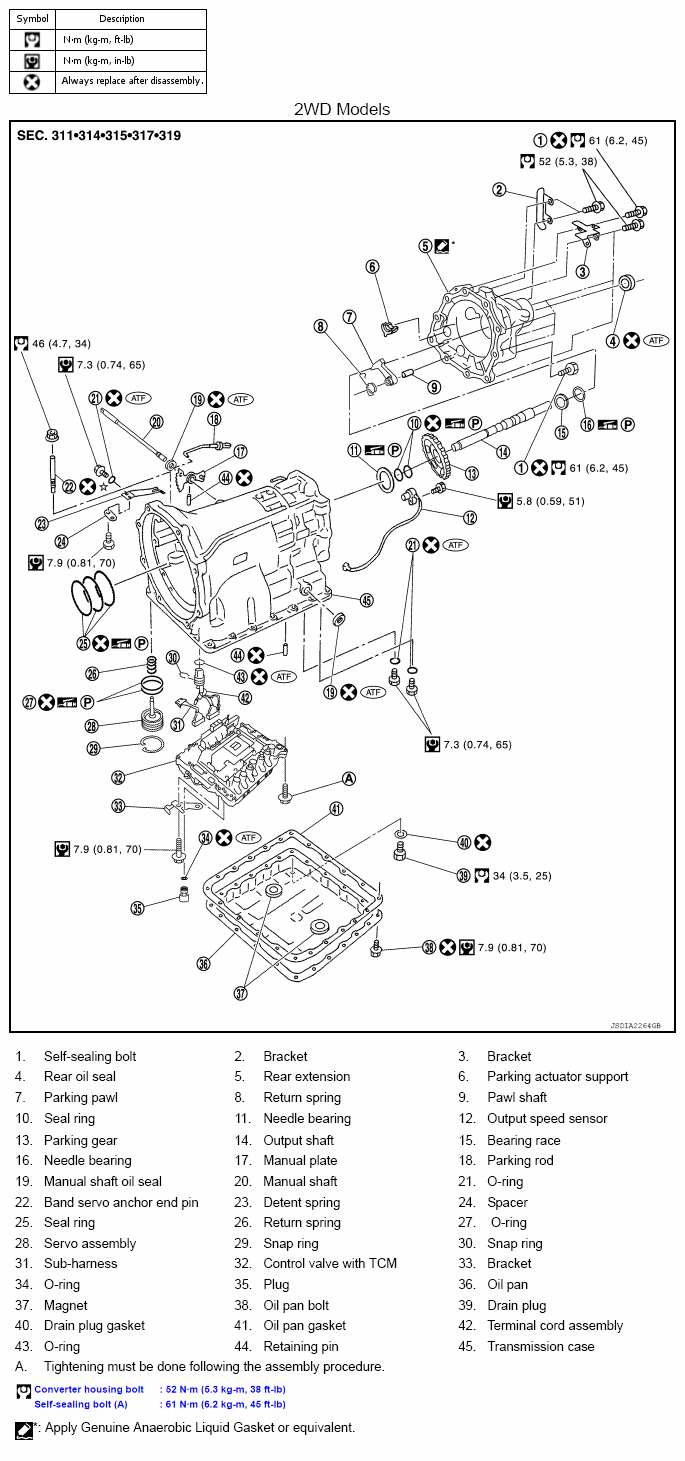

Fig 3: Automatic Transmission Overhaul Components With Torque Specifications (2WD Models)

Courtesy of NISSAN NORTH AMERICA, INC.

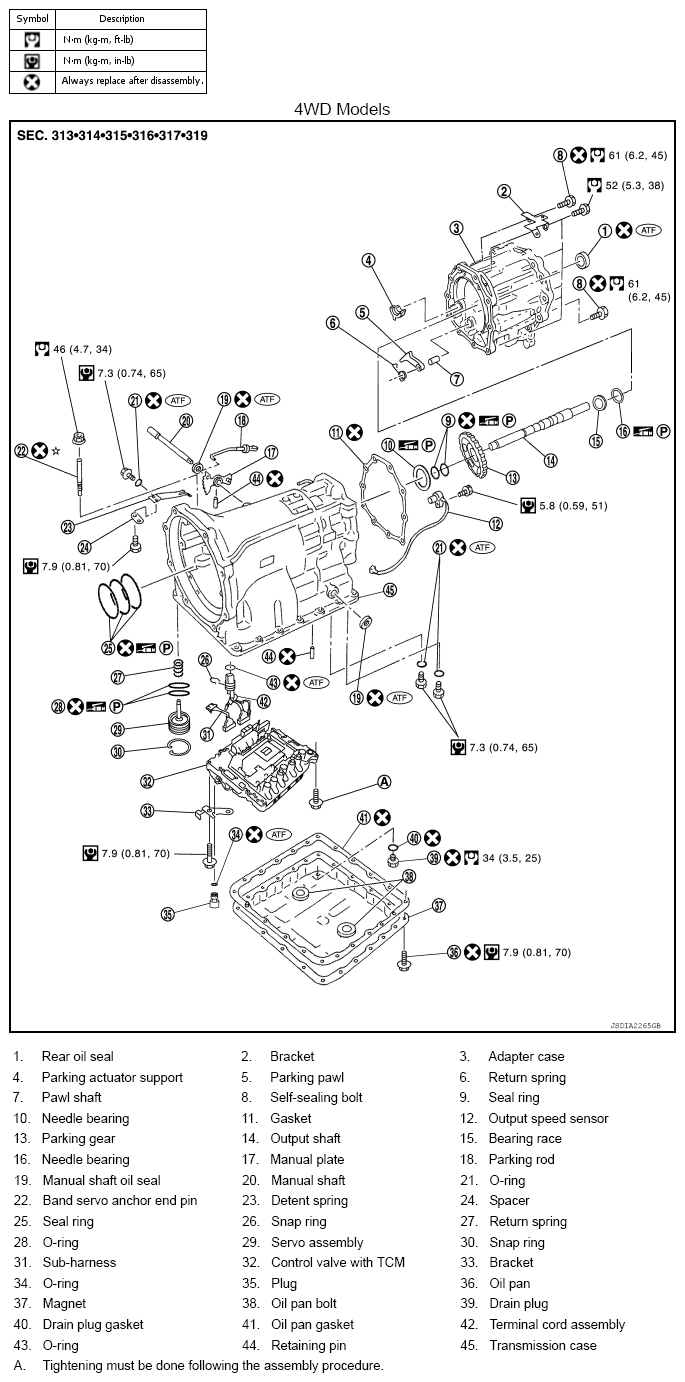

Fig 4: Automatic Transmission Overhaul Replacement Components With Torque Specifications (4WD Models)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENT " for symbols in the figure.
