Control System Diagram

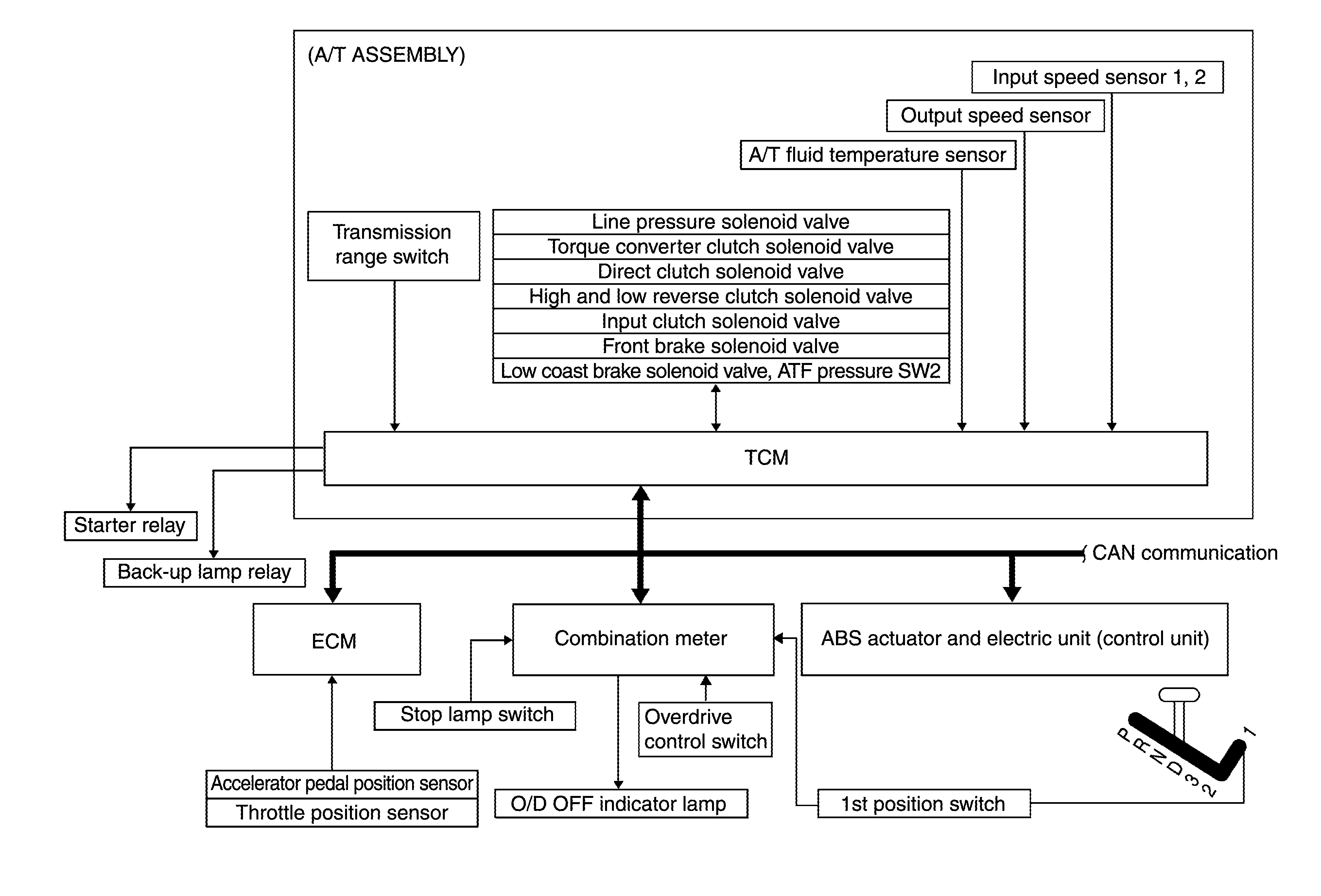

Fig 1: A/T Control System Diagram

G07122609

Courtesy of NISSAN NORTH AMERICA, INC.
