Shift Mechanism: Construction

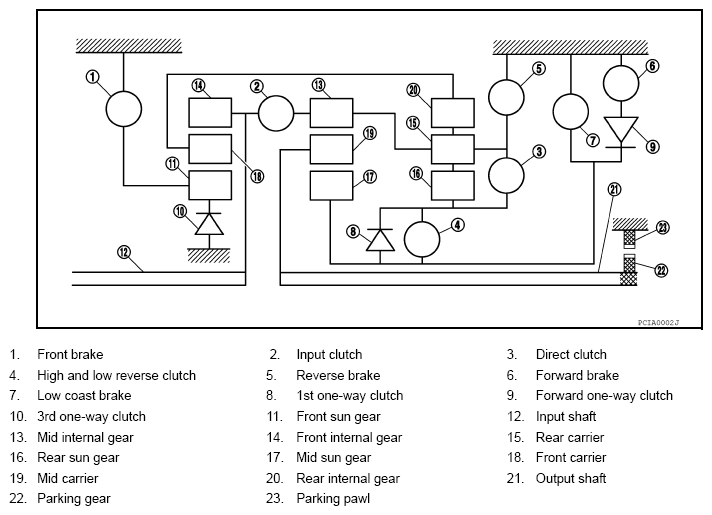

Fig 1: Identifying Automatic Transmission Control System Construction Components

G08970485

Courtesy of NISSAN NORTH AMERICA, INC.
