A/T Shift Lock System
>>
Connector End Views
Connector End Views

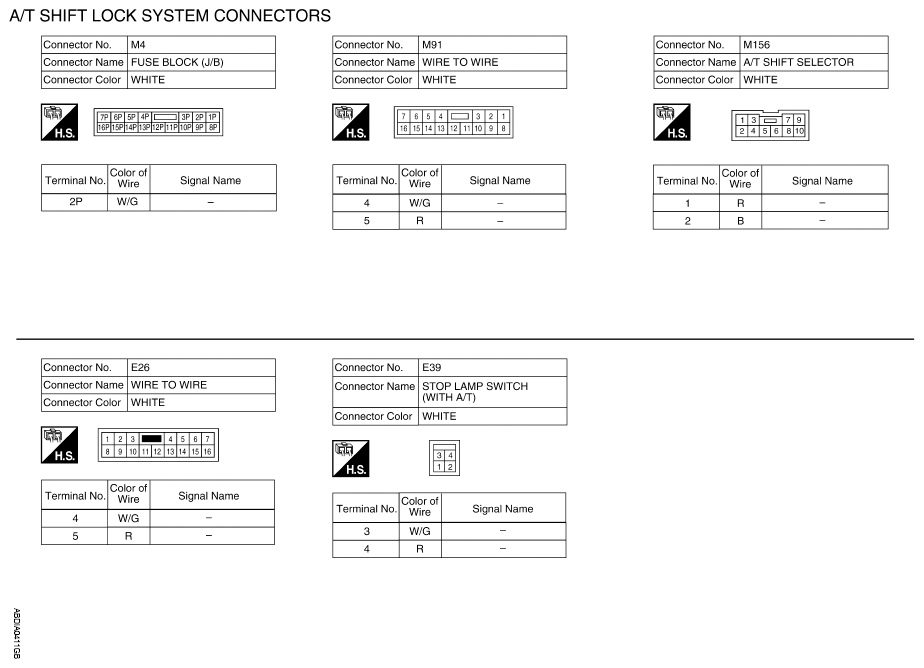

Fig 1: A/T Shift Lock System Connector End Views
Courtesy of NISSAN NORTH AMERICA, INC.
