Transmission Assembly: Component

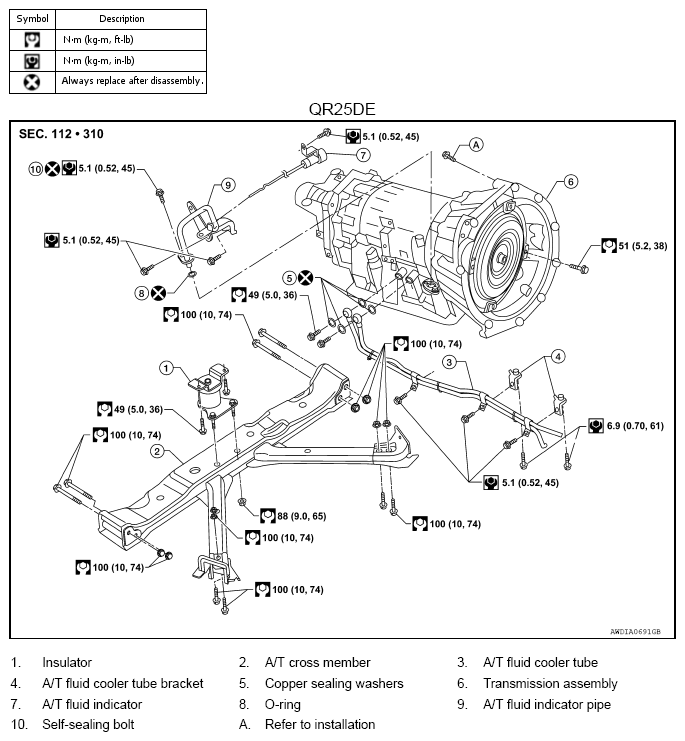

Fig 1: Exploded View Of Transmission Assembly (QR25DE) With Torque Specifications
G08970628Courtesy of NISSAN NORTH AMERICA, INC.

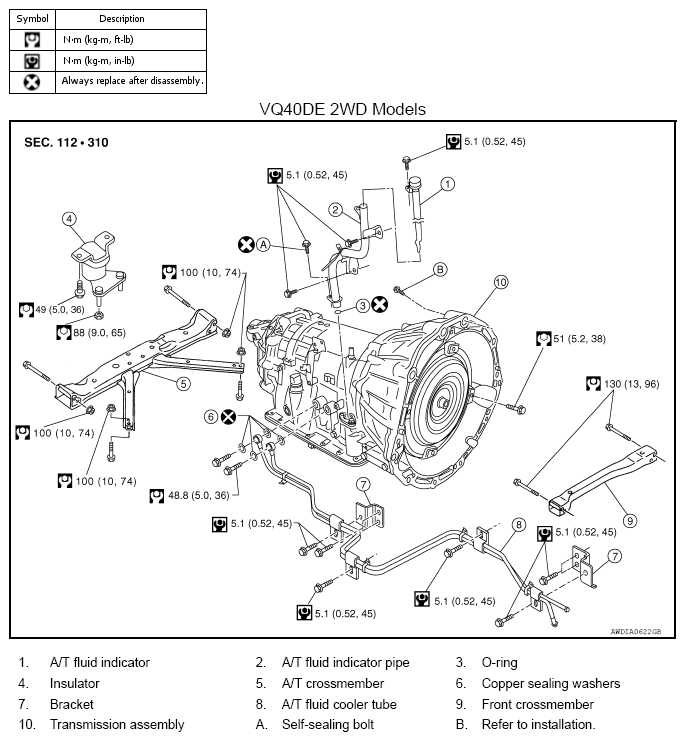

Fig 2: Exploded View Of Transmission Assembly (VQ40DE, 2WD Models) With Torque Specifications
G08970629Courtesy of NISSAN NORTH AMERICA, INC.

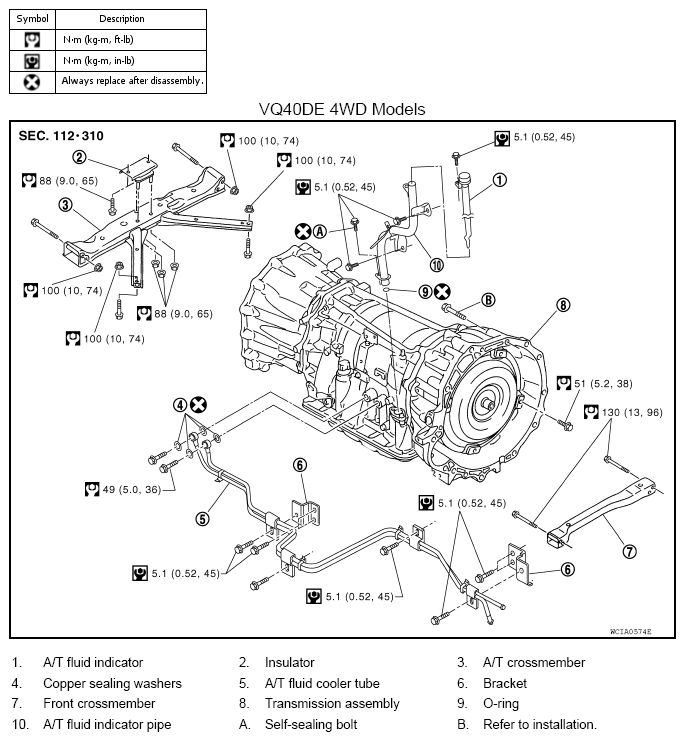

Fig 3: Exploded View Of Transmission Assembly (VQ40DE, 4WD Models) With Torque Specifications
G08970630Courtesy of NISSAN NORTH AMERICA, INC.
