Removal and Installation: Installation
- Set key interlock cable to key cylinder and install holder.
- Set shift selector handle to "P" position.
- Turn ignition key to "LOCK" position.
Courtesy of NISSAN NORTH AMERICA, INC.

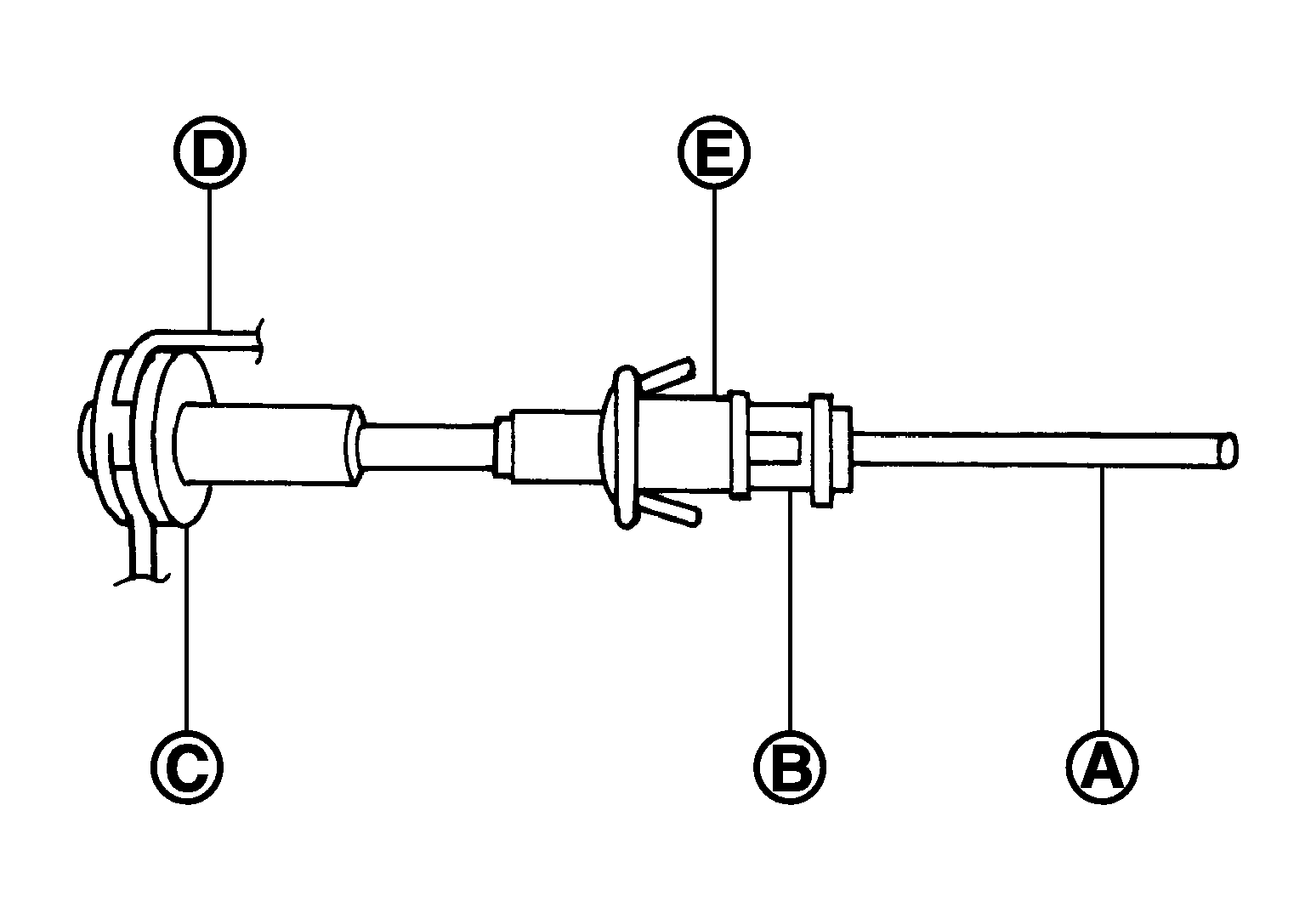

- Insert key interlock rod (A) into adjuster holder (B).
- Install casing cap (C) to bracket (D).
- Move slider (E) toward key interlock rod (A) to secure adjuster holder (B) to key interlock rod (A).
Courtesy of NISSAN NORTH AMERICA, INC.
- Install instrument lower panel LH. Refer to
"EXPLODED VIEW
".
- Install lower glove box. Refer to
"EXPLODED VIEW
".
- Install A/T finisher. Refer to
"EXPLODED VIEW
".
