Nissan-Datsun
>>
2013
>>
Cube S, Standard Trans
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering
>>
Steering System
>>
Removal And Installation
>>
Steering Wheel
>>
Exploded View
Exploded View

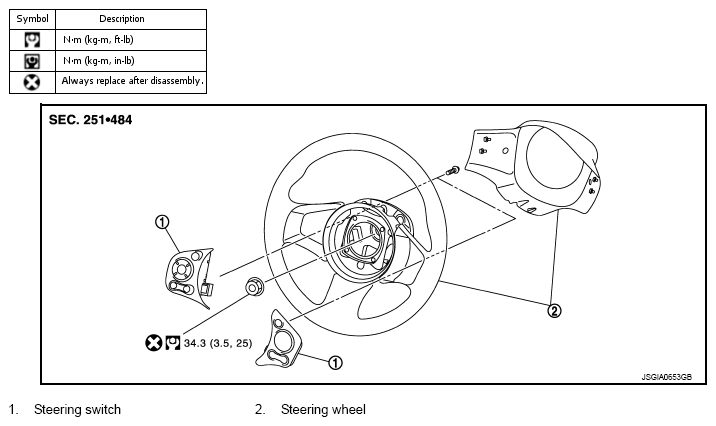

Fig 1: Exploded View Of Steering Wheel With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbols in the figure.
