Exploded View

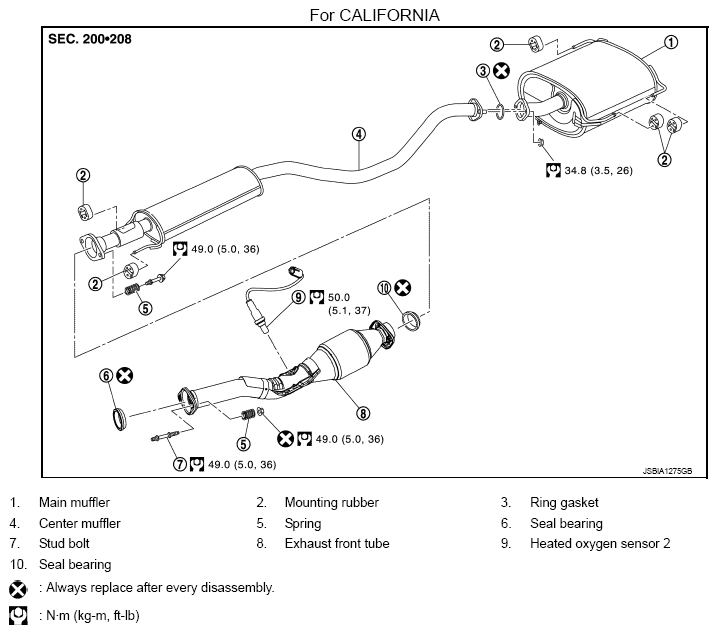

Fig 1: Exploded View Of Exhaust System With Torque Specifications (For California)
G08699620Courtesy of NISSAN NORTH AMERICA, INC.

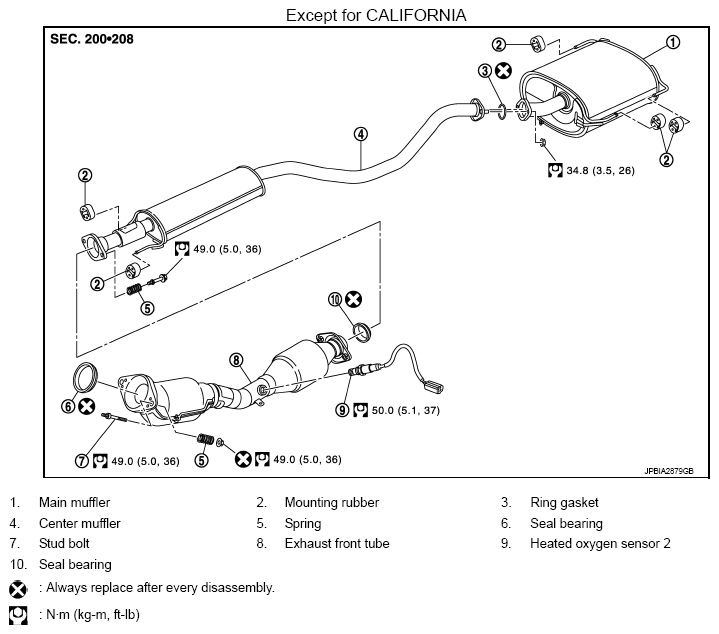

Fig 2: Exploded View Of Exhaust System With Torque Specifications (Except For California)
G08699621Courtesy of NISSAN NORTH AMERICA, INC.
