System Description
>>
Power Distribution System
>>
Component Parts Location
Component Parts Location

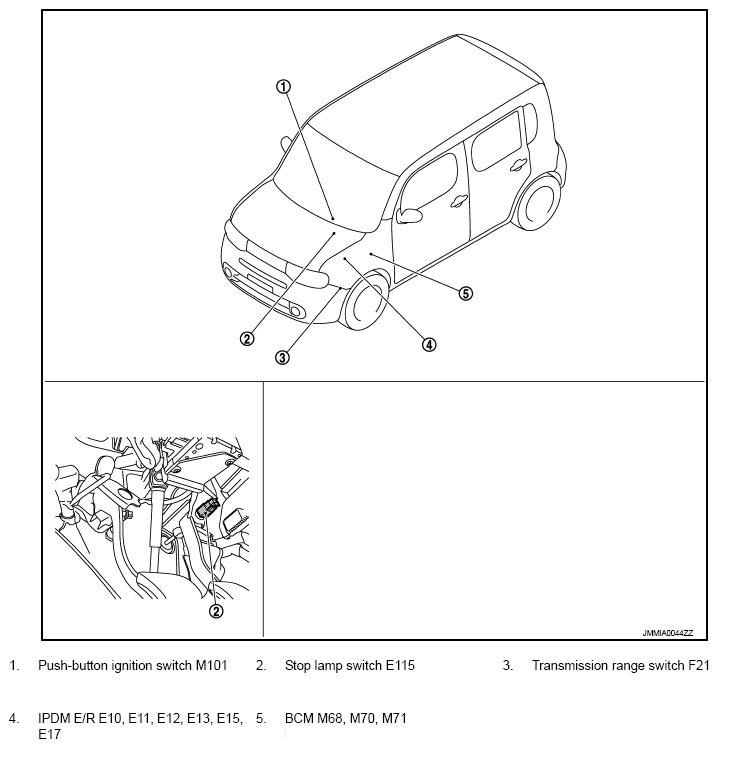

Fig 1: Power Distribution System Components Location
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
