Exploded View

WARNING: This page is about a different variant/trim than selected.

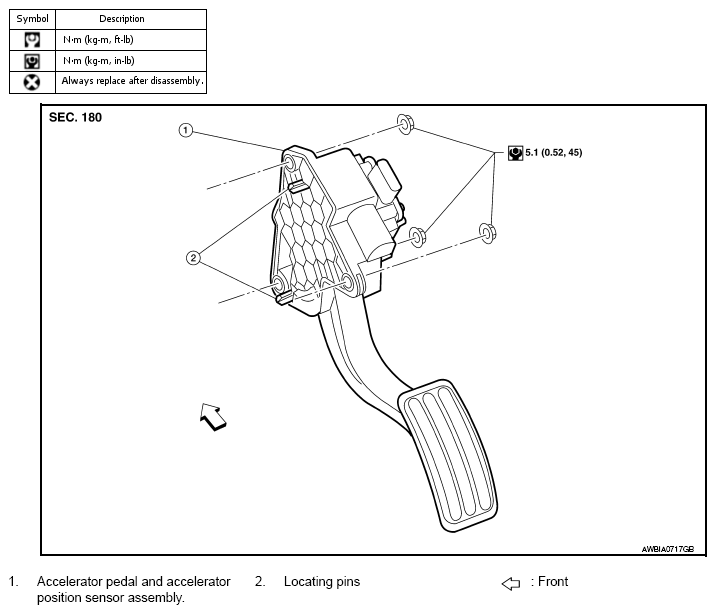

Fig 1: Accelerator Pedal And Accelerator Position Sensor Assembly And Pins With Torque Specifications
G08904257Courtesy of NISSAN NORTH AMERICA, INC.
