Exploded View

WARNING: This page is about a different car, the 2013 Nissan Cube. However, it is still accessible from the selected car via links, so may be relevant.

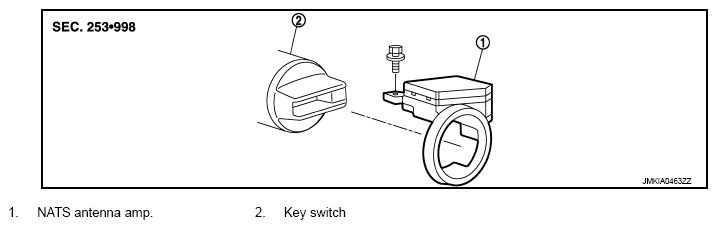

Fig 1: Exploded View Of NATS Antenna Amp.
G08701360Courtesy of NISSAN NORTH AMERICA, INC.
