Wiring Diagram - IPDM E/R

WARNING: This page is about a different car, the 2013 Nissan Cube. However, it is still accessible from the selected car via links, so may be relevant.

For connector terminal arrangements, harness layouts, and letters in a "diamond shape" symbol (option abbreviation; if not described in wiring diagram), refer to "CONNECTOR INFORMATION ".

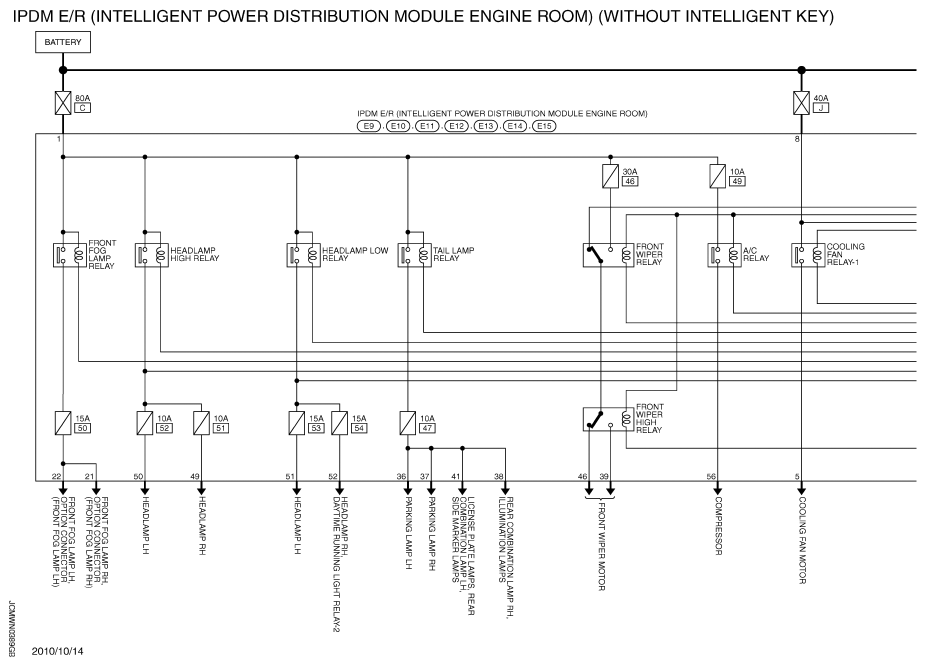

Fig 1: IPDM E/R Wiring Diagram (Without Intelligent Key) (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

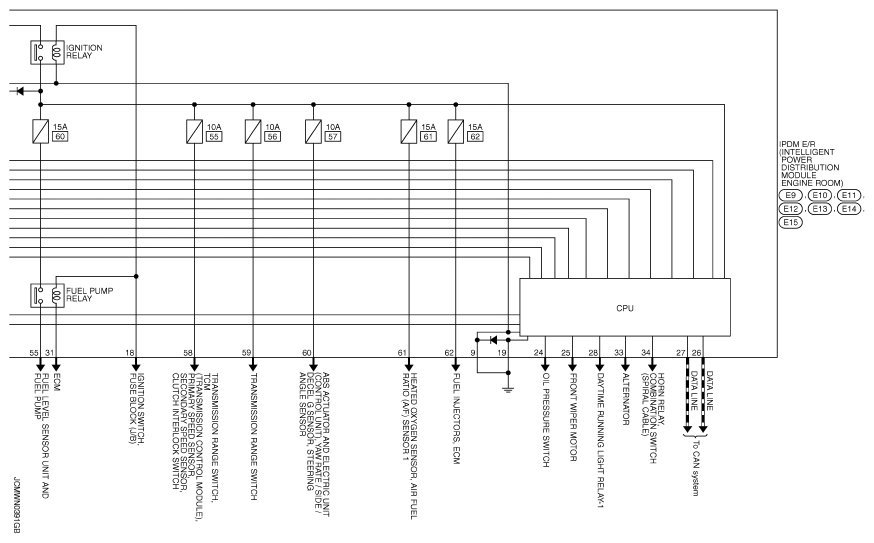

Fig 2: IPDM E/R Wiring Diagram (Without Intelligent Key) (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

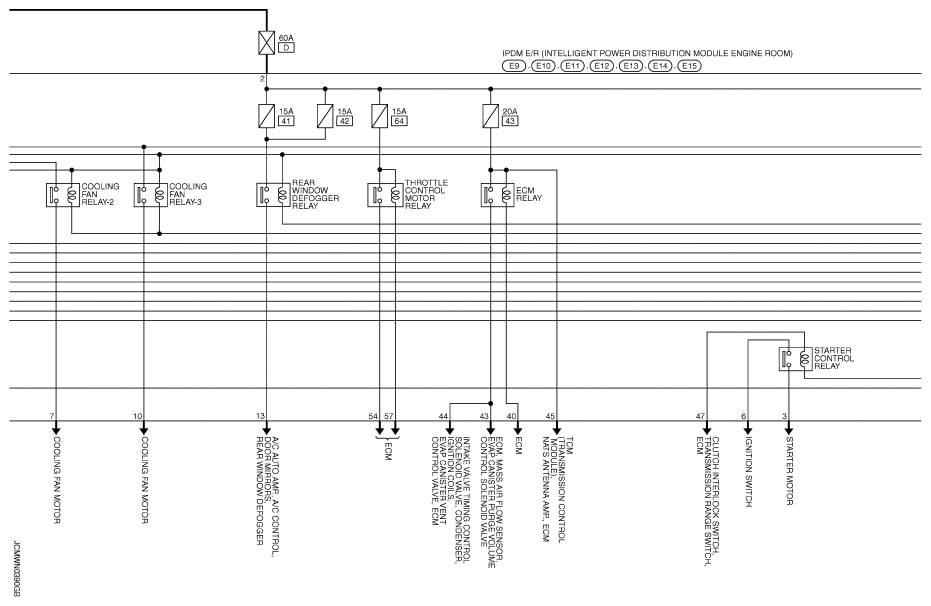

Fig 3: IPDM E/R Wiring Diagram (Without Intelligent Key) (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.
