Ignition Timing: Inspection

  1. CHECK IGNITION TIMING
    1. Attach timing light (A) to the ignition coil No. 1 harness.

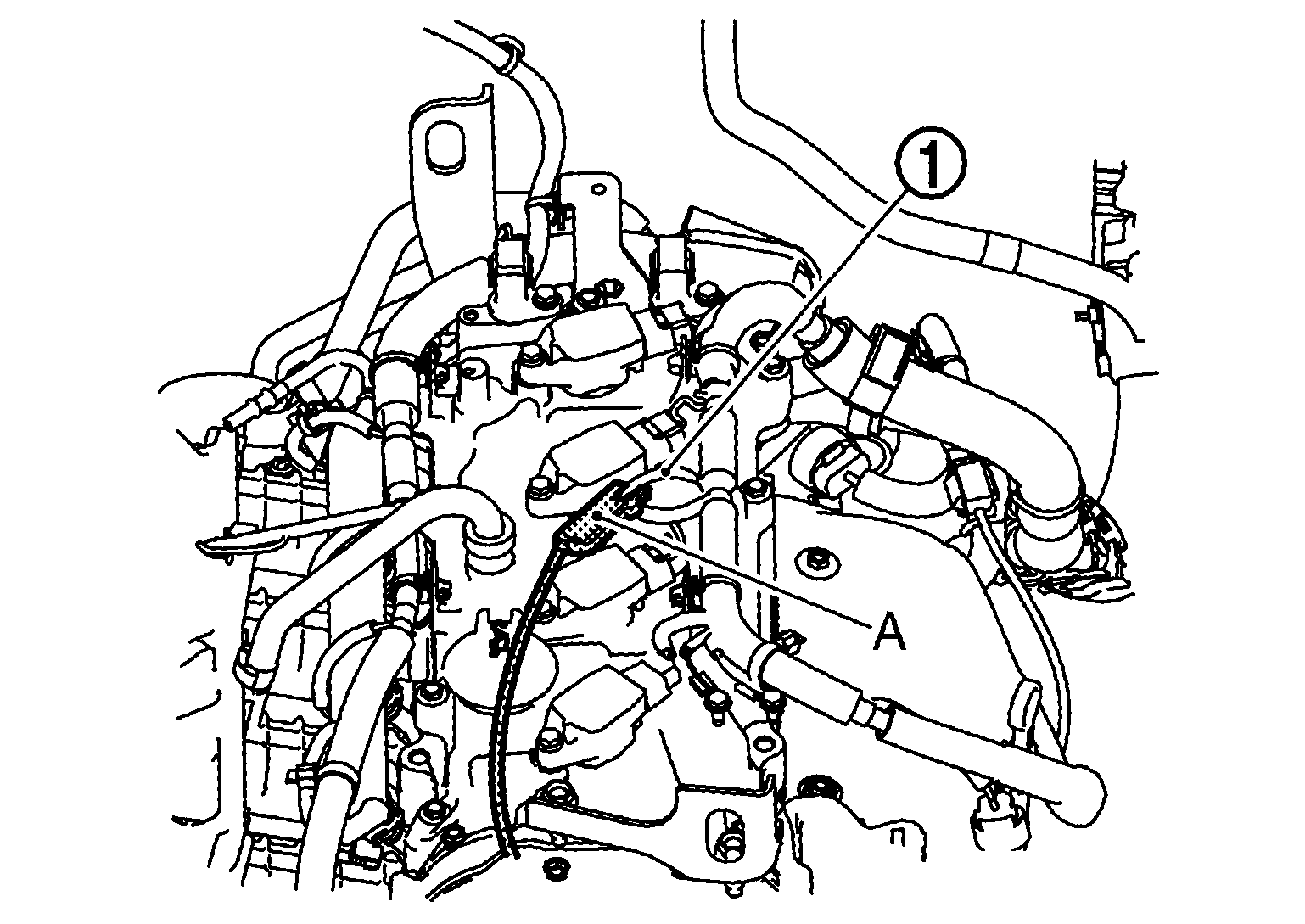

      Fig 1: Identifying Timing Light And Ignition Coil No. 1 Harness
      G08682475Courtesy of NISSAN NORTH AMERICA, INC.
    2. Check ignition timing.

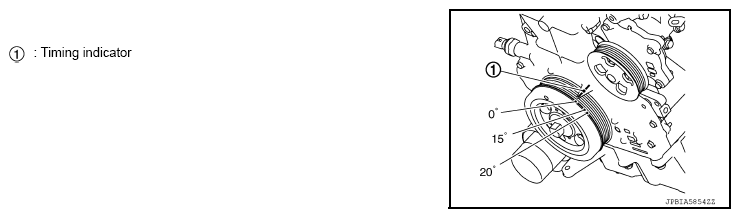

      Fig 2: Checking Ignition Timing Using Timing Indicator
      G08682476Courtesy of NISSAN NORTH AMERICA, INC.

      >> INSPECTION END
