Nissan-Datsun
>>
2013
>>
Altima Base
>>
Repair and Diagnosis
>>
Electrical
>>
Starter
>>
Starting System (Sedan)
>>
Wiring Diagram
>>
Starting System
>>
Connector Terminal Identification
Connector Terminal Identification

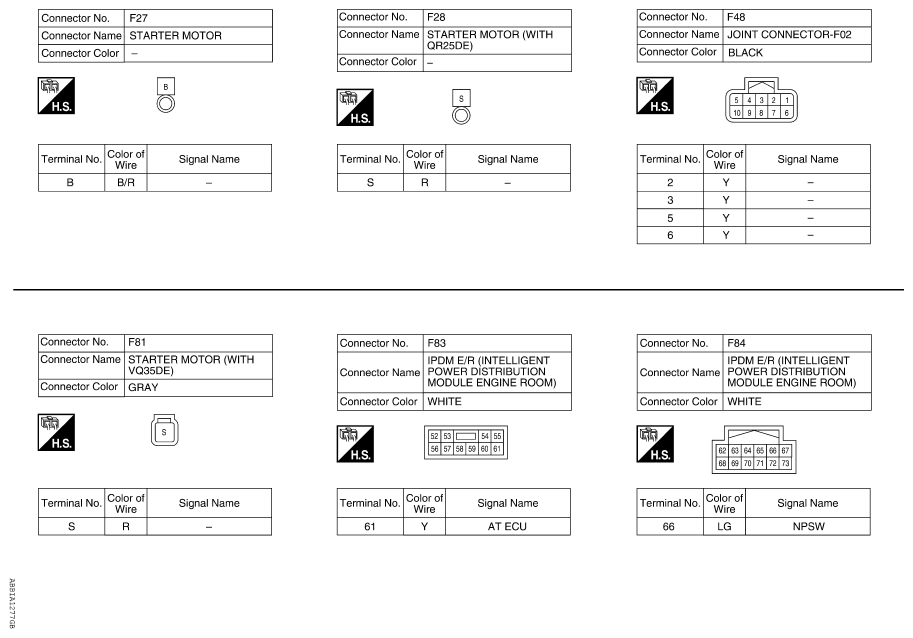

Fig 1: Starting System Connector End View (1 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

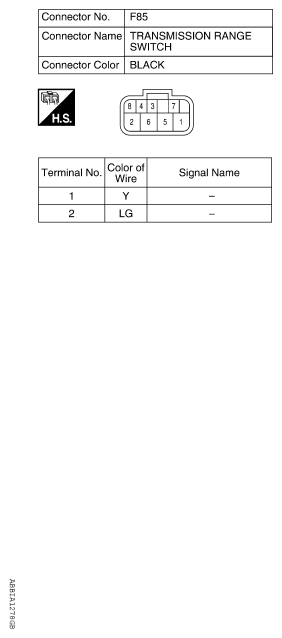

Fig 2: Starting System Connector End View (2 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

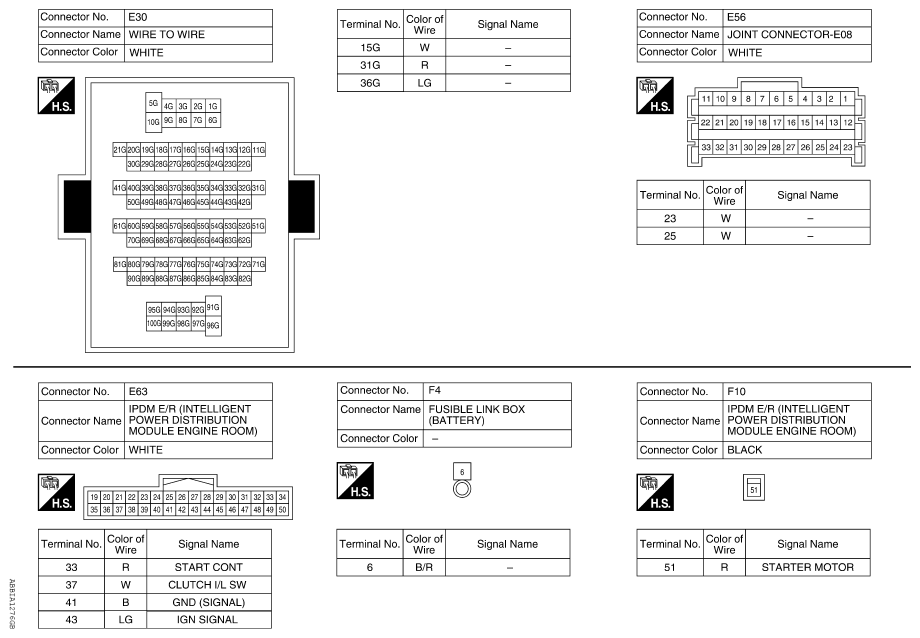

Fig 3: Starting System Connector End View (3 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

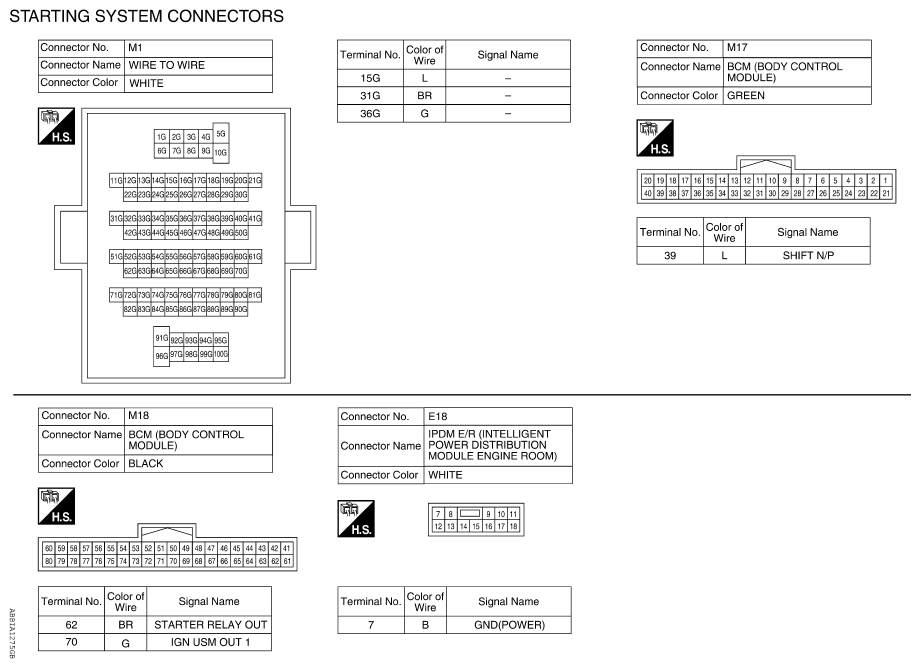

Fig 4: Starting System Connector End View (4 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.
