Connector Terminal Identification

Fig 1: Intelligent Key System/Engine Start Function Connector End View (1 Of 8)
G08683310Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Intelligent Key System/Engine Start Function Connector End View (2 Of 8)
G08683311Courtesy of NISSAN NORTH AMERICA, INC.
Fig 3: Intelligent Key System/Engine Start Function Connector End View (3 Of 8)
G08683312Courtesy of NISSAN NORTH AMERICA, INC.
Fig 4: Intelligent Key System/Engine Start Function Connector End View (4 Of 8)
G08683313Courtesy of NISSAN NORTH AMERICA, INC.
Fig 5: Intelligent Key System/Engine Start Function Connector End View (5 Of 8)
G08683314Courtesy of NISSAN NORTH AMERICA, INC.

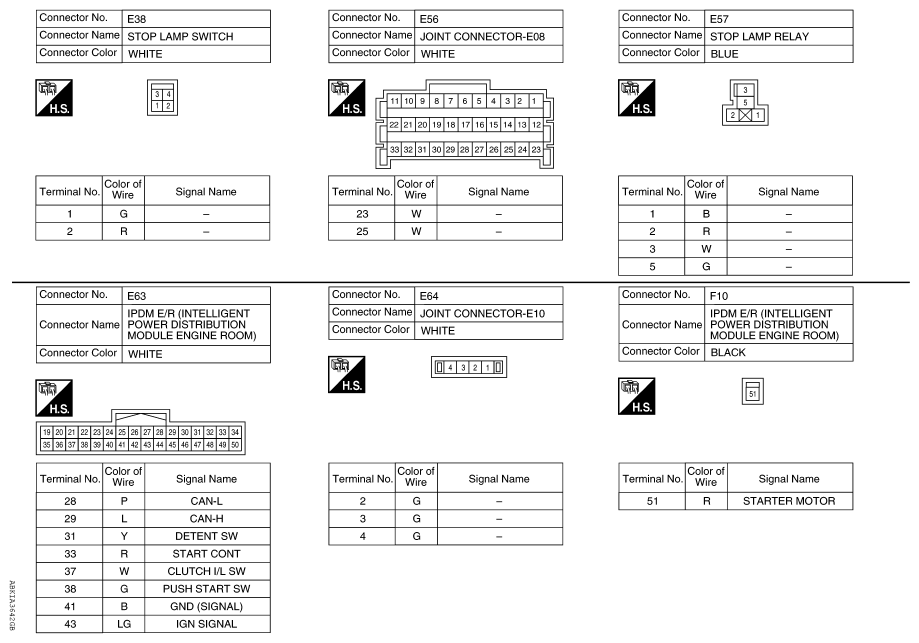

Fig 6: Intelligent Key System/Engine Start Function Connector End View (6 Of 8)
G08683315Courtesy of NISSAN NORTH AMERICA, INC.

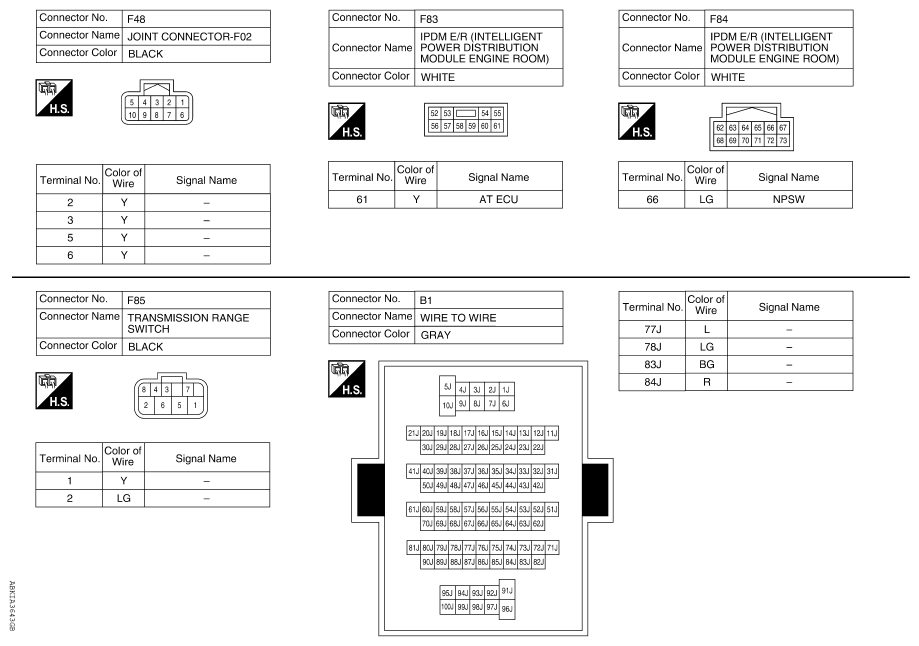

Fig 7: Intelligent Key System/Engine Start Function Connector End View (7 Of 8)
G08683316Courtesy of NISSAN NORTH AMERICA, INC.

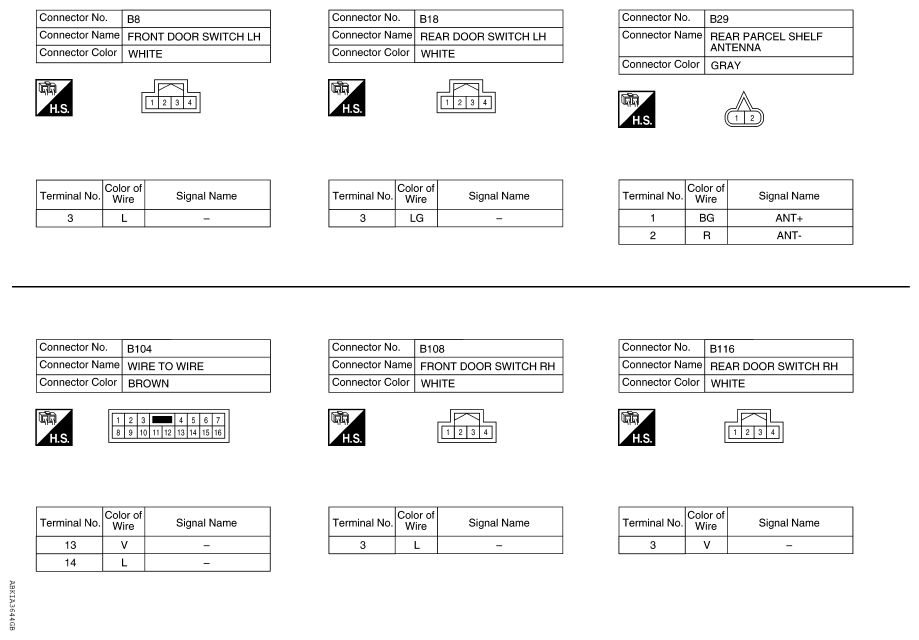

Fig 8: Intelligent Key System/Engine Start Function Connector End View (8 Of 8)
G08683317Courtesy of NISSAN NORTH AMERICA, INC.
