Engine Control System - Introduction (Sedan)
>>
System Description
>>
System
>>
Engine Control System
>>
ENGINE CONTROL SYSTEM: System Diagram
ENGINE CONTROL SYSTEM: System Diagram

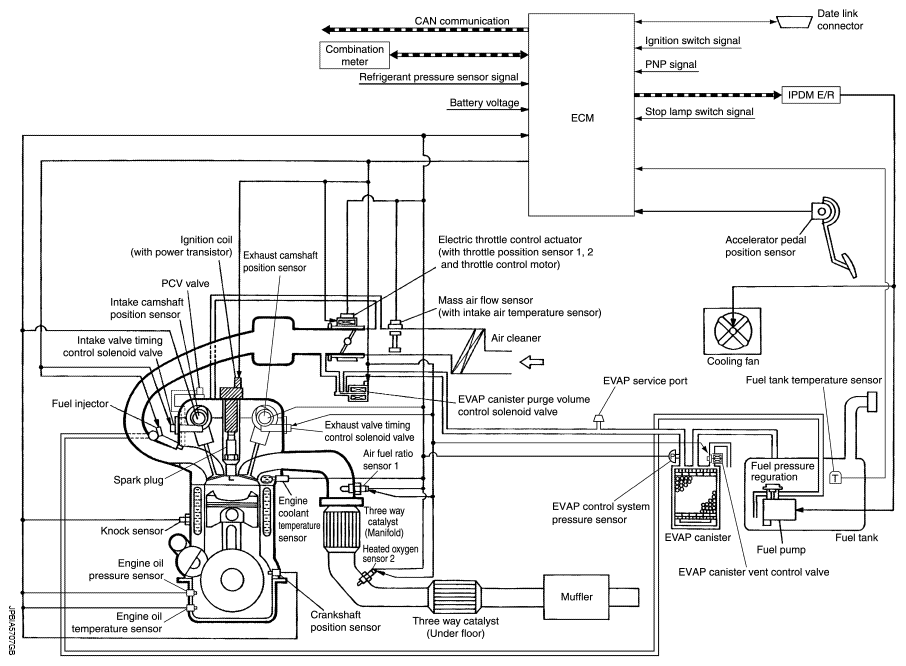

Fig 1: Engine Control System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
