Engine Control System - Component Testing (Hatchback)
>>
Mil And Data Link Connector
>>
Wiring Diagram
Mil And Data Link Connector: Wiring Diagram

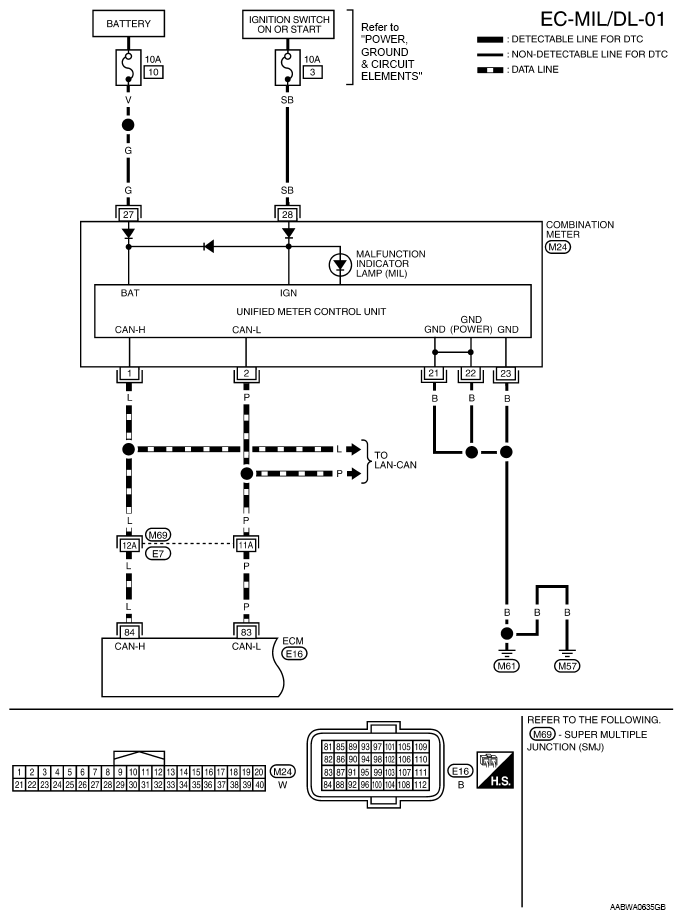

Fig 1: MIL & Data Link Connector Wiring Diagram (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

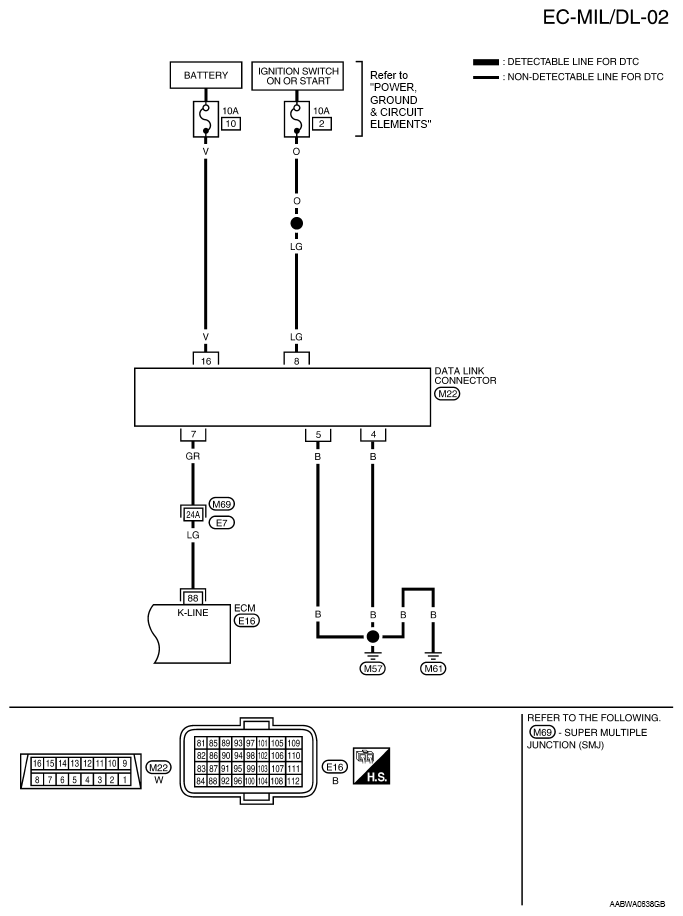

Fig 2: MIL & Data Link Connector Wiring Diagram (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
