Removal and Installation: MR20DE: Components

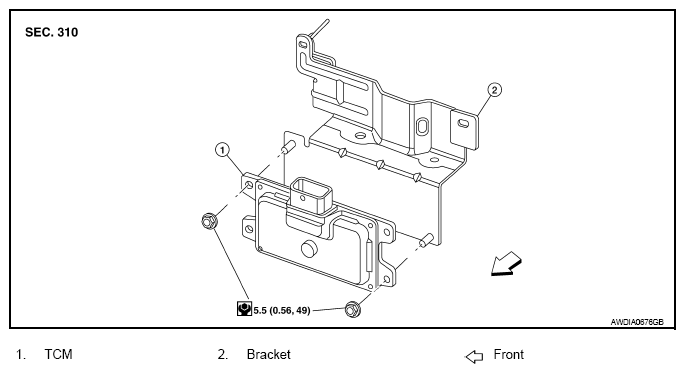

Fig 1: TCM And Bracket With Torque Specifications (MR20DE)

G08180802

Courtesy of NISSAN NORTH AMERICA, INC.
