Wiring Diagram - CVT - ODSW: Notes

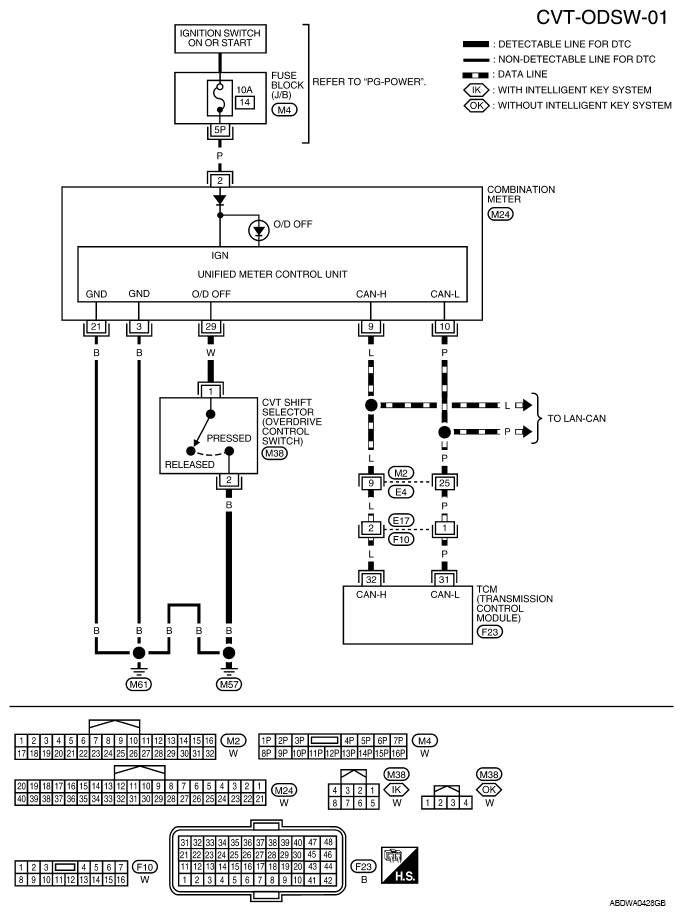

Fig 1: Identifying CVT Overdrive Switch Wiring Diagram With Connector End Views (CVT-ODSW-01)

G08180788

Courtesy of NISSAN NORTH AMERICA, INC.
